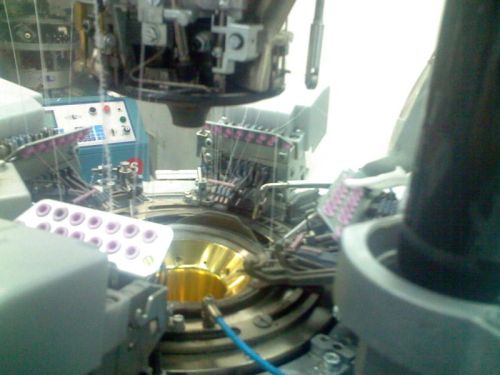

Automatic Hosiery Machine

DescriptionFeatures
Product Name: Automatic Hosiery MachineSingle Cylinder Sock-Knitting Machine
Electro-pneumatic single cylinder, 4-feed machine for the production of stockings and pantyhose in plain fabric, 1X1 and 3X1 fixed mesh on 4 feeds, covered lycra plating, plating on 4 feeds, size marks, pneumatic selection on all feeds
Single or double dial jacks
Electronic device to maintain the size at any temperature of the machine
Specification
HY-12< 400 needles >Latch 7 mm-max speed 850 rpm
HY-12< 432 needles> Gauge 75 thickness 0.34mm- max speed700 rpm
HY-12< 512 needles> Gauge80 thickness 0.26mm- max speed700 rpm
(the maximum speed obtainable depends on various factors, e. G. Yarns, stitch types & lubricant etc...)
Double-purpose anti-twist device: Rotary or fixed
Suction control valve programmable for infinite variability
6 pliers suction mouth 4 knives and extra cleaning air blow
2 sensors yarn sliding control
1 step motor sinker cap for sinker pressure
21 yarn fingers (2 plating yarn fingers per feed)
Forced and "drip-fed "lubrication for needles and sinkers
Yarn Creel
The sock ejection hood
Cut yarn recovery filter
"T-Band "device on 2 feeds
8 pneumatic selections on feed 2 &4; 16 pneumatic selections on feed 1&3
Black white display
