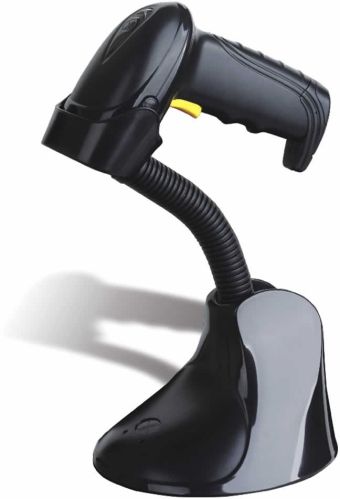

Automatic Infrared Sensor Barcode Scanner

We are offering x-500at automatic infrared sensor barcode scanner.
technical parameters
light source visible laser 650nm
error rate 1/5,000,000
safety according to national laser safety standard class2
barcode type 1d barcode like upc-a, upc-e, ean-13, ean-8, isbn/issn, code 39, codabar, interleaved 2 of 5, industrial 2 of 5, matrix 2 of 5, code128, code 93, code 11, msi/piessey, uk/plessey, ucc/ean128 code, etc.
supported interfaces built-in ps/2 keyboard, rs-232 serial, standard 2.0usb interface
trigger mode trigger buttons, automatic successive scanning, infrared successive scanning, holder automatic scanning(optional)
detection distance 25cm (250cm2) 20cm (100cm2) 5cm (small area)
scanning delay 2secs/time
scanning rate 100times/sec
baud rate rs232baudrate: 2400-38400
bar width minimum 0.1mm（4mils）
scanning width 60mm at 30mm (from objects)；98mm at 100mm (from objects)
depth of scanning field 2—9cm(0.1mm bar width)；3—40cm(0.3mm bar width)
scanning speed 100times/sec
scanning distance 10-600mm elevation angle 60°, inclination angle 45°
operating temperature -20ºc―50ºc
storage temperature -20℃―60℃
operating humidity 0―95%
storage humidity 5%―95%
input voltage dc 5v±5%
operating current 50ma(operating mode)；30ma(standby mode)；100ma(maximum peak)
quiescent current ¬20ma
shock resistance pass 1.5m free fall test
electromagnetic interference according to en8001,par1 standard
dustproof waterproof according to iec529,ip42 standard
scanner size hxwxl: 145mm × 65mm × 105mm
shell material abs+pvc+pc
language support many different languages
