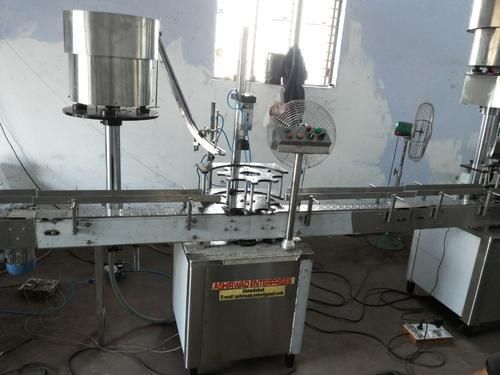

Automatic Inner Plug Pressing Machine, Certification : ISO 9001:2008

Automatic Inner Plug Pressing Machine.
Most suitable to Press your Plastic Inner Plug on Bottle''s Neck
MACHINE OPERATING SYSTEM
The feed container moving on conveyor belt are feed into an In-feed star wheel, star wheel bringing the sealed container below the pressing plate, mean while the sealed bottle pickup a Inner Plug from the delivery chute of bowl, where the body and the neck of the container are positioned below the pressing plate, where the pressing plate press Inner Plug gradually & performing perfect operation of Inner Plug pressing. The pre-filled bottle is kept manually on the conveyor belt. As the conveyor belt starts moving the bottle moves forward And pneumatic pressing device press the inner plug to the bottle tightly and bottle goes forward through conveyor belt.
MACHINE SPECIFICATION
Output : 40 Bottle/Minute (Depending upon the Inner Plug/Bottle sizes)
Electrical : 415 Volts,III Phase, 50 Cycles / Sec.
Direction of Movement : Left to Right
Net Weight : 400 KG. (Approx)
HIGH LIGHT OF THE MACHINE….
ü Total GMP Model
ü Synchronized by A.C. Frequency Drive for speed control
ü No Bottle – No Plug Pressing System.
ü Bottle Jam – Machine stop system.
ü Star wheel with over load clutch system to avoid bottle breakage.
ü Single motor synchronizes conveyor, star wheel & platform turret.
ü Minimum change overtime time from one size to another Plug & Bottle size
ü Bowl can be completed dismantled for easy cleaning.
ü Adjustable Conveyor height as per customer choice to align with another line machine.
ü Low noise level & low power consumption.
ü Standard in quality & Economical in price.
