Automatic Jasmine Flower Teabag Packing Machine, Brand Name : Yujie

Specifications
1.suitable for packing jasmine flower broken tea
2.filter teabag with thread tag and envelope
3.controlled by plc
4.ce & iso

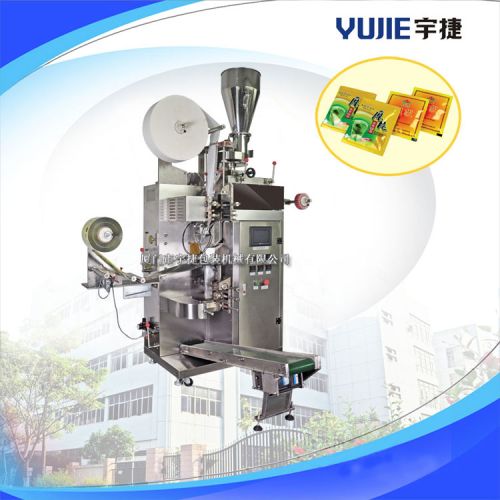

yd-18ii automatic jasmine flower teabag packing machine
alt
1,applications:
the machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas.
2,features:
automatic tea-bag packing machine with thread,tag and envelope is a hot-sealed,automatic and multifunction packing equipment ,the main characteristic of this equipment is it can molding in one time to protect the material from the direct contact with workers'hands and improve the efficiency.the inner bag is filter itssue,tagging with thread and label automatically is available.the outer bag is composite paper (including various kinds of composite membrane hotsealable such as paperplastic,plasticplastic,plasticaluminumplastic,paperaluminumplastic.)the most advantage is ,the capacity ,the inner bag and outer bag can be adjuster flexibly,and the size of the inner and outer bag also can be adjuster according to the requirement of the customer to get the perfect effect.
3,technical data:
model
yd-18i
yd-18ii
features
the inner bag without thread and tag
the inner bag with thread and tag automatically
filling range
3-15(ml)
3-15(ml)
capacity
30-60(bagmin)
30-40(bagmin)
inter bag size
w: 50-80(mm)
l: 50-70(mm)
w: 50-80(mm)
l: 50-70 (mm)
outer bag size
w: 70-90(mm)
l: 80-120(mm)
w: 70-90(mm)
l: 80-120(mm)
tag size
w: 40-55(mm)
l: 20-40(mm)
thread length
155(mm)
power
220v50hz
220v50hz
total power
3.5kw
3.5kw
dimension
(l*w*h)1000*950*2000(mm)
(l*w*h)900*610*1500(mm)
weight
500kg
500kg
