Automatic Label Roll Winding and Counting Machine

Listing ID #4258791

Get Latest Price

Label Roll Dia. :400 mm
Label Roll Height :90 mm Standard*
Overall Dimensions :1350 mm (L) x 550 mm (W) x 1200 mm (H) (24 Mtr./Min.) 2250 mm (L) x 550 mm (W) x 1200 mm (H) (24 Mtr./Min.)
Gap Between two Labels :appx. 3 mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Capacity : 0.75 Kw
Label Roll Speed : 24 Meters per miinute (Optional 45 Meters available)
Gap Between two Labels : appx. 3 mm
Power : 1.2 Amp.
Label Roll Dia. : 400 mm
Core Dia. : 75/76 mm
Label Roll Height : 90 mm Standard*
Electrical : 220 VAC Si4gle Phase Power Supply (50/60 Hz)
Overall Dimensions : 1350 mm (L) x 550 mm (W) x 1200 mm (H) (24 Mtr./Min.) 2250 mm (L) x 550 mm (W) x 1200 mm (H) (24 Mtr./Min.)

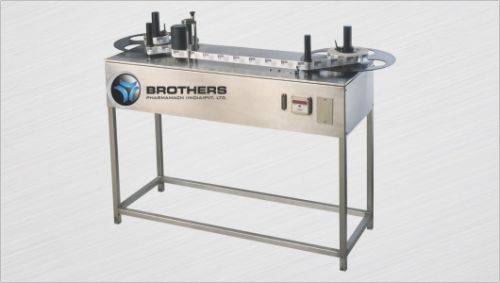

LABELCOUNT-250- Automatic Label Roll Winding and Counting Machine

The Automatic Sticker Label / Film Roll Winding or Unwinding and Counting System. The system is useful for counting of Label Roll as well as Printing of Various data i.e. Batch no., Price, Date on Labels ising Inkjet Coding or other Non-Contact Coding System provided by user. Machine with built-in Label Sensor and Electronic counter for easy use of system for counting of labels. Machine also having A. C. Variable Drive System for Speed Control. System is also useful for counting various type of packaging materials i.e. Pouch Film Counting and also for Coding with the help of Inkjet Coding System. Machine with Variable Speed Control, 400 mm Diameter Label Spool with Fully Stainless Steel Construction.

Machine with specially designed controller which helps operator ro set the machine to count required label and stop the labelling after reaching desired count of labels, however the stoppage tolerance of labels is depending on length of labels and the stop position of roll would be 6 to 12” forward depending on speed of machine.

Extra Label Sensor require for using Coding System to print Serial number or other detail on labels. Optional Online Coding System, Inspection System available on request. Machine Stop Automatically once selected information on label found missing (System Includes suitable Camera System with Light Source for scanning)

BUILT-IN UNIQUE FEATURES :

Virtually Maintenance free machine
Easy to change label roll size
User Friendly Label Counting Adjustments
Self Protected against Voltage Fluctuations
Suitable for On-Line InkJet/Laser Coding System using required sensor and encoder
Suitable for Label Counting as well as offline Coding
Built In A.C. Variable Frequency Drive System.
Fully Stainless Steel finish Machine

OPTIONAL FEATURES :

Label Roll Empty - Machine Stop System with Alarm
Missing Label in Roll - Machine Stop System with Alarm
Option of Inkjet Coder for Offline printing various data on labels or on release paper.
Vision system for checking various data on labels
High Speed Roll Counting with 45 meters per minute speed
Label Sensor and Encoder for Inkjet Coding
