features:

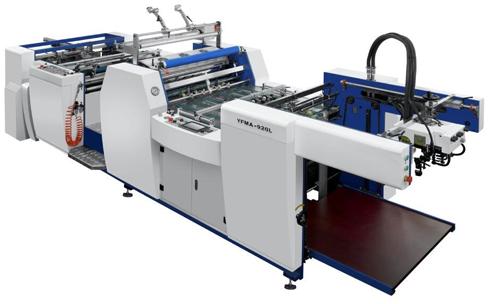

yfma-l series fully automatic laminators are our newly designed thermal film lamination machines. This lamination machine is composed of feeding system, laminating system, cutting system, paper collecting and rewinding system. The electric and pneumatic devices are controlled by programmable control (plc) system. And the operator can operate the machine easily by touch screen. Heating roll adopts built-in heating system which has excellent heating remaining property to stabilize laminating temperature and make it more precise. This machine centralizes the features of compact structure, high automation and humanized operation design, is an excellent choice for large and medium-size enterprises.
main technical parameter:
model: yfma-560l / yfma-720l / yfma-920l / yfma-1100l
max laminating size(w*l): 560*820mm / 680*940mm / 889*940mm / 1050*1200mm
min laminating size (w*l): 210*260mm / 210*260mm / 210*260mm / 300*300mm
paper thickness: 105-500gsm
max. Film roll diameter: φ300mm
total power: 20kw(380v ac3 50/60hz) / 24kw(380v ac3 50/60hz) / 24kw(380v ac3 50/60hz) / 26kw(380v ac3 50/60hz)
laminating speed: 5-60m/min
dimension: 4800*1450*1750mm / 5100*1550*1750mm / 5320*1750*1750mm / 6100*1950*1750mm
machine weight: 1600kgs / 1800kgs / 2000kgs / 2200kgs
