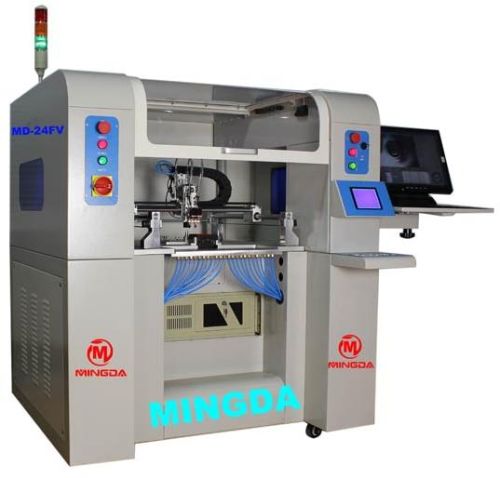

Automatic LED Smt Pick and Place Machine

CheapestGood quality
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering Md-24fv Automatic Led Smt Pick and Place Machine. 1. Maximum pcb size: 357×367mm 2. Maximum moving range: 432×515mm 3. Z axis maximum moving range：20mm 4. Pick and place....

View More Details

Send Enquiry

Product Details

We are offering Md-24fv Automatic Led Smt Pick and Place Machine.
1. Maximum pcb size: 357×367mm
2. Maximum moving range: 432×515mm
3. Z axis maximum moving range：20mm
4. Pick and place speed： 7100
5. Moving drive system High-speed DSP digital high pressure drive
6. Pick and place precision： 0.01mm
7. Power supply:220V, 50Hz
8. Compressed air: 0.65-0.75Mpa
9. Belted feeder: 8, 12, 16, 24mm
10. Power rate:800W
11. Pick and place head:Double head
12. Component angle:0-360°any angle, autosynchronous turning when moving
13. XY moving mode：New straight line interpolation linkage V201109
14. Air source:Anti-mounted positive and negative pressure switch
15. Operating system:Independently developed 201110 version
16. Programming mode: point-to-point programming, vision programming, PCB file coordinate guide-in
17. Vision programming camera :High-pixel color infrared CCD
18. Vision display :8 inch color high-pixel display
19. Weight: 320KG
20. Dimension: 1200mm*1180mm*1500mm
