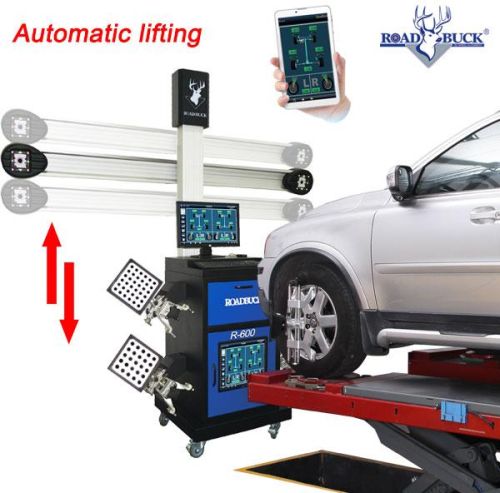

Automatic Lifting Wheel Alignment Machine, Brand Name : Road Buck

Outstanding functions
Intelligent LED guide
With special design, flashing LED lamps offer dynamic feedback during measuring and using;
Target disk
Aluminium die-casting, with the characteristics of light, which is thin, strong and no deformation, can service for a long time.
Clamp
Fast installation, suitable for all rims between 12”-23” . Double chuck, which can install both on iron and aluminium wheel hub.
Other Features
♦3D max Dynamic Display System
♦No Electronic Components
♦Four-point Wheel Clamps
♦3D Animation Technics
♦Reminding Window
♦Pre-Tightening Rotatable Jaw
♦Pushing the Vehicle Once
♦3D Animation Adjustment Guidance
♦Animation Operation Reminding
♦Original Standard Database
♦Caster and Kingpin Inclination Measurement
♦Body Dimension Measurement
♦Toe-out-on Turn Measurement
♦Tire Diameter Measurement
♦Maximum Turning Angle Measurement
Technical parameters
Item Accuracy Measurement Range
Display Precision 1’
Camber ±2' ±15°
Caster ±2' ±26°
Kingpin Inclination ±2' ±26°
Toe ±2' ±20°
Setback ±2' ±5°
