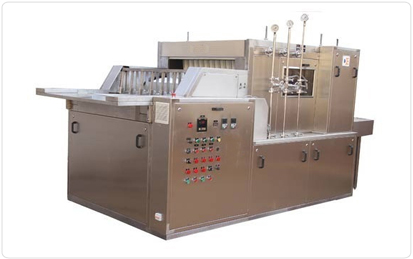

Harsiddh Engineering manufactures top quality Linear Bottle Washing Machine for smooth and perfect operation. Their linear bottle washing equipment features six internal zones for washing available with 60 and 120 jets. The machine is quite strong with contact parts manufactured from SS316-grade materials. Other than that, the main machine is constructed from SS304 materials. You can use this tool for washing bottles of approximately 10 to 200ml measurements. Additionally, the machine is also attached with 2tanks and pumps, thus offering smooth operations. Our machines have CE certifications.
Â
One of the most beneficial features of the machine is that its washing order and sequence entirely depend on customer needs. Additionally, the independent cleaning zones ensure zero contamination. The device exhibits a water-consumption capacity of 500 to 700 liters per hour. With this equipment, you will have the opportunity of distinguishing five different washing zones. Power consumption of the equipment is 5.0HP, which makes it energy efficient and low-power consuming. The machine is also capable of producing 240 bottles in a minute and works on the linear cleaning mechanism.
Â
With intermittent systems for washing bottles, this particular device provides a pristine clean washing experience. Automatic infeed and exit options offer complete freedom of operations. With air consumption of 25 to 30 CFM, the device happens to be the best choice for flat as well as round bottles.
SALIENT FEATURESHLBW-120
HLBW-240
7000 / Hour (Depend on size)
14000 / Hour (Depend on size)
Linear Tunnel Type
Linear Tunnel Type
Dia. 32mm to 60mm & 38mm to 180mm in Height
Dia. 32mm to 60mm & 38mm to 180mm in Height
10ml to 200ml
10ml to 200ml
Stainless Steel 316LÂ
Stainless Steel 316L
12 to 15 CFM
12 to 15 CFM
5 Zone Or can be set as per customer require sequencesÂ
5 Zone Or can be set as per customer require sequencesÂ
2 Nos. Each having 6000 Litre / hour capacity & Centrifugal Pumps
2 Nos. Each having 6000 Litre / hour capacity & Centrifugal Pumps
380 V, 3 Phase, 50 Hz, 4 wire
380 V, 3 Phase, 50 Hz, 4 wire
4 H.P. For Main Machine
5 H.P. For Main Machine
Fresh Water, DM Water, WFI, Air – 30 CFM
Fresh Water, DM Water, WFI, Air – 30 CFM
850 to 950mm adjustable
850 to 950mm adjustable
2700mm (L) X 1400mm (W) X 1550mm (H)
3180mm (L) X 2500mm (W) X 1650mm (H)
