Automatic Linear Vial Washing Machine, Certification : ISO 9001:2008

₹ 3 Lakh - ₹ 12 Lakh / Piece

Driven TypeMechanical
Automatic GradeAutomatic
CertificationISO 9001:2008
ConditionNew
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

4.0/5

Member Since 15 Years
Nature of Business Retailer
GST No. 24AATFA0750G1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Driven TypeMechanical
ConditionNew
Automatic GradeAutomatic
Power9-12kw, 6-9kw, 3-6kw, 12-15kw, 1-3kw
CertificationISO 9001:2008
FeatureRust Proof, Low Maintainance, Long Life, High Performance, Good Capacity, Easy To Operate
Availability500-1000kg, 1500-2000kg, 1000-1500kg
Total Carbohydrate1year
Working Height875 ± 50MM Adjustable
Vial Size2 ml to 30 ml Round Glass Vials
Power Supply3 Phase + Neutral + Earthing / 415 V AC / 50Hz
Output Speed60 to 200 Vials/Minute
Wash Cycle7 Wash
Air Consumption5 CFM

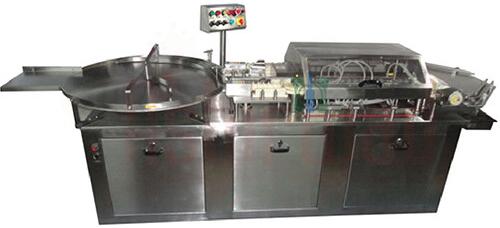

The Automatic Linear Vial washing Machine comprises the main structure, covered with SS cabinet safety acrylic doors, in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI.

Salient features
