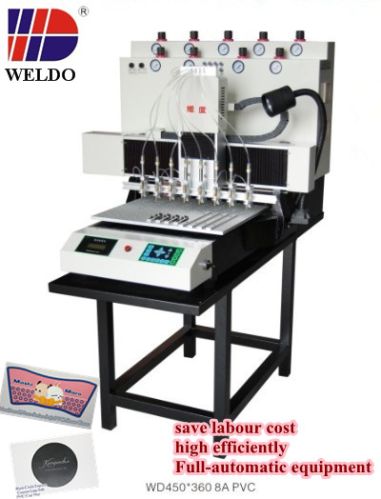

Automatic Liquid PVC Dispensing Machine, Brand Name : WD

We are offering automatic liquid pvc dispensing machine for carton pvc shoes cover. Wd pvc dispensing machine is full-automatic pvcsilicon plastic dispenser machine with 8 colors .which is specialized in manufacturing soft pvc label for shoes and garment with well-performance.
parameter:
model: wd450*380 8a
running distance : x: 450mm y:380mm z: 70mm
working table size: 450*380mm
working speed : 12000mmmin
position accuracy: 0.01mm
analysis ability: 0.001mm
transmission: rolling screw drive
table load: 15kg
power: 220v 50hz 300w
soft pvc production process are as follow:
dispensing fonts---heating to make pvc curing---add base material---dynamic cooling stereotypes---stripping products from mould---finished product
specifications:
1,with ce approval
2,easy to use
3,equipped servo motor
4,low maintenance
5,complete automatic
6,best software for machine
oversea service :
we will send an engineer to your company to provide technical
service until the machine work stably,or you can send one or two person to our company getting technical instruction.
more information ,pls do not hesitate to contact with us ,we`ll reply to you as soon as possible.
