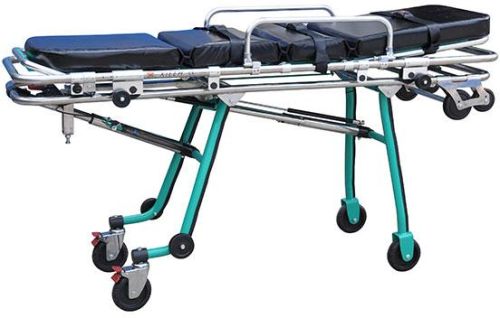

Automatic Loading Ambulance Stretcher YXH-3H, Brand Name : Ltd

I.technical parameters：
1. Product size (l x w x h): 195 x 55 x 85cm
2. Low position size (l x w x h): 195 x 55 x 38cm
3. Packing size: (l x w x h): 199 x 61 x 39cm
4. Net weight: 47kg gross weight: 54kg
5. Load bearing:≤200kg
ii. Instruction：
it has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy lockingunlocking system to lock the separable stretcher into the trolley
adjustable height:65-85cm
the backrest can be adjusted from 0 - 65 deg by gas spring
swing-down side rails to protect patient when transfer
the mechanical legs are controlled by the handles in both sides
only one person can slide the stretcher on to the ambulance
the emergency ambulance stretcher with automatic loading can be locked by the fixing device when it is in the ambulance
iii. Applied for：
approved by clinic practice, this item is suitable for ambulance, hospital battlefield, gym, etc. To carry the wounded & patients. It allows one person to perform retrieval
iv. Attention：
1. When carrying patients with this stretcher, be sure lock tightly the fender locking device & fasten the safety belt for safety.
2. During general operation, be careful and avoid the stretcher surface scraped
v. Maintenance：
1. Keep clean as routine (incl. Sterilization).
2. Often check if any parts loose or not.
