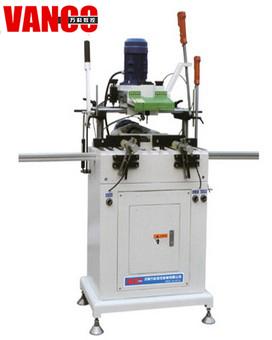

Contact SupplierWe are offering automatic lock hole milling machine for pvc window and door szsb-100
function:
milling all kinds of lock holes.
Features:
1. Formed by three-hole drill part (horizontal) and copy milling part (vertical).
2. The height of three-hole driller can be adjusted easily.
3. Guide pillar is installed for vertical movement of three-hole drill to ensure parallel precision of three holes and the bottom.
4. Three-hole driller lay in postposition with easy operation.
5. Easy adjustment of the processing position.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 12lmin
power supply: 380v50hz
input power: 1.1kw, 0.75kw
three-hole driller diameter: ï�12mm, ï�10mm
copy milling range: 290mm*90mm (l*w)
copy milling cutter diameter: ï�5mm, ï�8mm
dimension: 3150mm*1020mm*1600mm (l*w*h)
weight: 400kg
