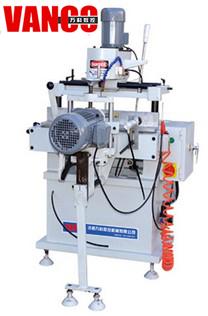

Automatic Lock Hole Milling Machine

We are offering automatic lock hole milling machine for pvc window and door lz3f-300*100
function:
milling all kinds of lock holes.
Features:
1. Formed by three-hole drilling part (horizontal) and copy milling part (vertical).
2. Special machining pvc milling cutter, which possess good quality and high durability.
Technical parameter:
power supply: 380v50hz
power: 2.1kw
air pressure: 0.5mpa~0.8mpa
air consumption: 30lmin
milling cutter diameter: ï�5mmx60mm; ï�8mmx80mm
milling cutter revolving speed: 12000rmin
driller diameter: ï�12mm
driller revolving speed: 900rmin
hole space: 21.5mm
milling range: 370mm*125mm*12mm (l*w*deep)
cross section: 230mm*210mm (max) (w*h)
dimension: 1000mm*1130mm*1500mm (l*w*h)
weight: 260kg
