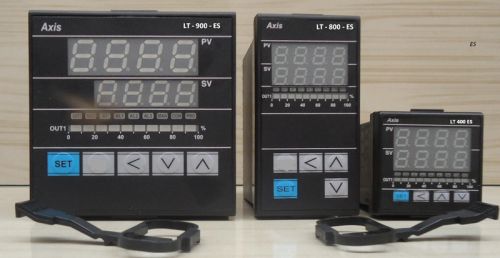

Axis LT-ES Series Temperature PID Process Controller

Axis LT-ES Series Temperature PID Process Controller

Listing ID #1513275

Get Latest Price
  • TypeAutomatic, manual
  • Resolution0.1 Oc
  • DesignHigh Speed 8 Bit Microcontroller Based With 14 Bit Adc
  • No. of InputsSingle
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Dydac Controls verified-icon
Mayur Vihar, Delhi
08048115281
  • Member Since 16 Years
  • Nature of Business Retailer
  • Year of Establishment 2002

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Automatic, manual
  • Temperature Range 0.0 To 2000.0 Oc
  • Design High Speed 8 Bit Microcontroller Based With 14 Bit Adc
  • Size 48*48 Mm, 48*96 Mm, 96*48 Mm, 96*96 Mm
  • Resolution 0.1 Oc
  • No. of Inputs Single
  • Temperature Sensor Input Thermocouple Type J, K, R, S, B, C, D

Customers can obtain out qualitative range of Axis LT-ES Series Temperature PID Process Controller at modest rates. We manage a huge stock of Temperature PID Process Controller in our state of the art warehouse to address customer’s bulk demands with ease.



Details :

The Axis family of microprocessor based controllersc ombine a high degree of functionality and reliability at a very low price, in 4 different formats : 1/16 DIN, 1/8 DIN, 1/ 4 DIN.


They are ideal controllers for regulating temperature in a variety of applications, including :

  • Dryers.
  • Semiconductor packaging /testing.
  • Plastic processing.
  • Packaging machinery.
  • Painting and coating.
  • Climatic chambers.
  • The Axis family satisfies low cost basic control requirements and also provides advanced features such as motor position control, phase angle power control and Set-point programming
  • Dual displays and Bargraph. Programmer functionality.
  • Two 4 digits displays and one LED bargraph to display the PV and SP.
  • Easy to configure. Two different configuration levels provide easy access to parameters.
  • A 4-digit security code preventsunauthorized changes. Parameters can be hidden to the user to prevent misconfiguration of the unit.
  • Various Control algorithms.
  • PID or ON/OFF control.
  • Universal Power supply - Operates on any line voltage from 85VAC TO 265VAC AT 50/60HZ.


Standard Specifications

Model LT 400- ES LT 600-ES LT 700 - ES LT 800 - ES LT 900 - ES
Dimension 48X48mm 96X48mm 72X72mm 48X96mm   96X96mm
Supply voltage AC 85~265V,DC 15~50V (Option) AC 85~265V
Frequency 50 / 60 HZ
Power consumption approx 3VA approx 4VA approx 3VA appro x
4VA		 approx 4VA approx 4VA approx 3VA
Output 1 ut Accuracy 0.2 % FS ± 1digit
Sample time 250ms
TC K , J , R , S , B , E , N , T , W5Re/W26Re , PLII , U , L
RTD PT100,JPT100,JPT50
Relay SPST type SPDT type SPST type SPDT
type		 SPDT
type		 SPDT type SPDT
type
3A , 220V , electrical life:100,000 times or more (under rated load)
Voltage pulse For SSR drive. ON : 12 V , OFF : 0V , max load current : 20mA
mA dc 4~20mA, Maximum load resistance:560 Ω
Alarm 1 3A , 220V , electrical life:100,000 times or more (under rated load)
Control algorithm PID, PI, PD, P, ON / OFF(P=0)
PID range P: 0.0 ~ 200.0 %, I: 0~3600s, D: 0~900s
Isolation Output terminals(control output , alarm , transmission) and input terminals are isolated separately
Isolated resistance 10MΩ or more between input and case (ground) at DC 500 V 10MΩ or more between output and case (ground) at DC 500 V
Dielectric strength 1000V AC for 1 minute between input terminal and case (ground) 1500V AC for 1 minute between output terminal and case (ground)
Operating Temp Humidity range 0~5o℃
20~90%RH
Weight 150g 225g 225g 225g 300g 130g 80g
Display Height PV:7mm SV:7mm PV:7mm SV:7mm PV:14mm SV:10mm PV:7m
m SV:7m
m		 PV:14mm SV:10mm      -                -







Optional Specifications

Model Alarm 1 LT 400 – ES LT 600 – ES LT 700 - ES LT 800 - ES LT 900 – ES
Available Available Available Available Available
SPST type SPDT type SPST type SPDT type SPDT type
3A , 220V , electrical life:100,000 times or more (under rated load)
Water/Dust proof IP65
