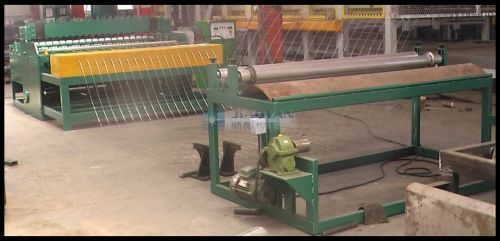

Automatic Mesh Welding Machine, Brand Name : jiaoyang

We are offering automatic mesh welding machine.
Function characteristics ----motor power
this machine adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point and without welded tracks.
the cross and line wires are fed from coils.
this machine is equipped with precise equipment for weft cutting (that won the nation patent zl2208722.2) and position (that won the nation patent al02208721.4), so the length of wefts is identical and regular, it is unnecessary to slice the side.
mesh pulling system adopts elastic tension link (that won the nation patent zl200520024380.9) and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.
the finished products can be in coil or in panel.
the main technical parameters:
wire diameter 1.4-2.3mm line wire feed continuous in coil
cross wire space 50-200mm cross wire feed continuous in coil
line wire space 50-200mm rated voltage 380v 50hz
width of mesh 1200mm rated power 36kvaã�2
welding speed 50 timesmin overall dimension 2.5 x 2.5 x 1.5m
number of warp 25 machine weight 2800kgs
application
1. Mesh fence, casting roof mesh in the building
2. Construction (3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh, animal cages).
