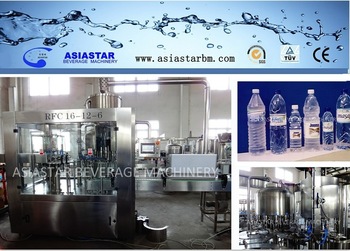

Automatic Mineral Water Plant

We are offering automatic mineral water plant.
feature:
1. Mineral water filling equipment
2. Producing capacity: 1000-32000bph
3. Material: stainless steel 304 or 316
4. Plc+ mmi control
5. Certification: ce, iso, sgs
characteristics:
a. Our bottling machine is mainly used for washing, filling and capping pet bottled or glass bottled non- carbonated drinks such as mineral water, pure water, stilled water and distilled water;
b. Our integrated machine have including washing bottles , filling beverage, and capping for the bottles after filling;
c. The contact time is shorten between material and the outside, to ensure the cleaness of beverage after filling;
d. Rfc series bottling machine adopts hanging type conveying-bottle system to make changing bottle mold more convenient, faster and more laborsaving.
E. The main machine adopts advanced plc control technology. The key electric elements adopt mitsubishi, omron, siemens, etc international famous brand products;
model rfcw8-8-3 rfcw16-12-6 rfcw18-18-6 rfcw24-24-8
number of rinsing head 8 16 18 24
number of filling head 8 12 18 24
number of capping head 3 6 6 8
rated production capacity 3000bph 4000bph 6000bph 10000bph
installed capacity 3 3.5 4 4.8
overall size 1900×1420×2000 2200×1600×2300 2450×1900×2300 2750×2180×2400
model rfcw32-32-10 rfcw40-40-12 rfcw50-50-15
number of rinsing head 32 40 50
number of filling head 32 40 50
number of capping head 10 12 15
rated production capacity 12000bph 16000bph 24000bph
installed capacity 7.6 8.3 9.6
overall size 4000×2300×2300 4550×2650×2300 5450×3210×2300
