Automatic N-folded Hand Towel Machine

Automatic N-folded Hand Towel Machine (DC-KTM1-230/2-5)
I. Introduction
Model name: DC-KTM1-230/2-5

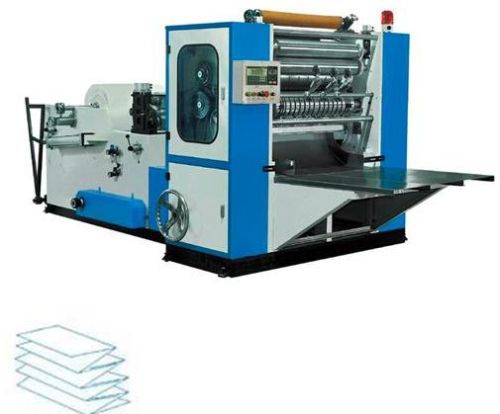

This machine is used to produce three-folded kitchen towels as the picture shown above.
II. Function and Features
The machine has the function of embossing and cutting raw paper into kitchen towel. The folding of product is “N” type folding and you can draw it one by one .This kind of towel is widely used in hotel, office and kitchen etc, which is convenient and sanitary.
We adopt original vacuum absorption technology, the adaptability of raw material is very strong .The folding, cutting, counting, etc, several processes are completed on the machine together.
1. Counting automatically and output products are in good order.
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopt step-less adjusting speed to roll which may fix different tension of raw paper.
4. Control pneumatic with electric convenient to operate.
5. Capable of forming complete set of rolling figure unit with clear look.
6. Have a wide range of production width for user to sale conveniently.
III. Technical Parameters
1. Production Speed: 60~100 m/min
2. Range of raw material:33-47g/ m² (single layer)
3.open size(L*W): 230*(220-240)MM
4.folding size(L*W): 80*(220-240)mm
5. Power: 15.5Kw (380V 50Hz) (For your reference, it depends on the power situation in your place)
6. Overall size (m): 4.1×1.3×2.1(L×W×H)
7. Weight: 3.5T
IV. Specification of raw material
1.The width of raw material: 460mm
2.The diameter of raw material: 700mm-1000mm
3.The thickness of raw material : 33g m²-47g/ m²
4.The diameter of core: 76mm
V. Export Details
1. Delivery time: 30 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine
