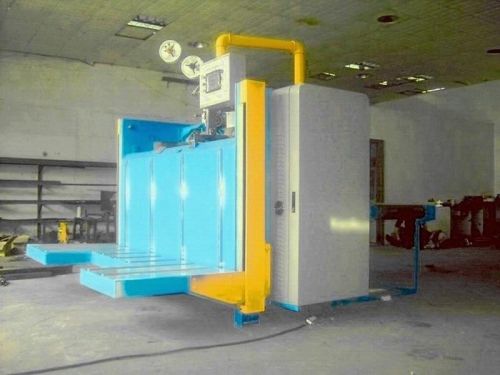

Automatic Nail Box Machine2

We are offering tj- db semi - automatic nail box machine2.
Single-sheet double-servo semi-automatic nailing machine it is the equipment used for the final procedure of carton manufacturing, and is mainly used for stitching of single-sheet corrugated carton board to meet the production demands of several varieties and different batches, it is applicable to such products as food and cotton textile packing requirement, and is fairly ideal carton equipment presently. The machines has such advantages as high production efficiency, low labor intensity, simple operation, stable performance and reliable operation, and is the necessary equipment for packing carton industry.
Details of major parts
1japan yaskawa or germany siemens servo (option)
2taiwan tiande switch, travel switch, taiwan yangming proximity switch, taiwan shilin contactor
3　taiwan weilun or germany siemens touch screen (option)
4　germany siemens plc, module
5 nail head blade and bottom die made of german tungsten steel (wearing-resistance)
6taiwan jiebao air compressor (option)
function
1 double-servo drive (patent no. 20092053719.6), high accuracy, less mechanically driven part, effective reducing machinery failure rate
2 rear manual baffle plate or rear electric baffle plate (option) (patent no.: 200920053720.9 ), driven by step motor in accurate size, convenient and fast for size change
3　manually or electrically adjusting the paper feeding rubber wheel clearance (option)
4　operation with touch screen, convenient and fast for parameters (stitching space, nail quantity, nail type, rear baffle plate) change
5it can nail with single nail (/ / /) , double nails (// // //) and reinforced nail (// / //) to meet the nail type demand of the clients.
6it only takes one minute to change size.
7　automatic counting for paper feeding part (0-999), automatic feeding out after one bundle is complete for convenient bundling.
8it can nail carbon with cover and carton without cover (the minimum space between the first nail to the carton edge is 25mm).
9　it will make automatic alarm if there is no stitching line remained (to avoid bad products with omitted nail or less nail caused by exhaust of stitching line) .
10　it only requires two operators from semi-finished product to nailed finished-product, operation is simple and convenient, it can reduce salary.
Machine parameter
machine speed 500/min total power 6hp
nailing space 30-100mm (adjusted at will) weight 2000kgs
nail quantity 1-99 nails high of feeder 900mm
nail type single nail, double nails, reinforced nails applicable corrugated carton board 3 layers/5 layers of corrugated carton board(3mm-8mm)
min. Paper size 300*606mm
max. Paper size 1515*2460mm stitching line specification 2.0mm*(0.65mm-0.75mm).
