Automatic Optical Brinell Hardness Testers

We offer Automatic Optical Brinell Hardness Testers.

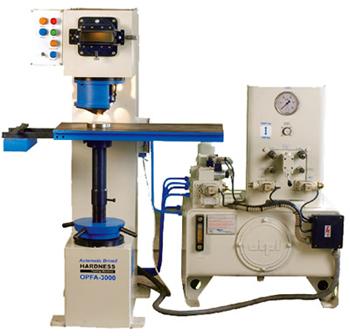

AUTOMATIC OPTICAL BRINELL HARDNESS TESTERS (Model : OPFA-3000, OPFA-3000-PC)
• The machine has a robust,C-type load frame & has been designed for production testing of cast or forged components like leaf springs, cam shafts, etc. For Brinell hardness value. This machine is suitable for foundries, engineering industry on production line.
• Since most of the operations are fast and automatic, the test speed is high with less operator fatigue.
• The cycle time (except loading unloading) is about 12 seconds per test.
• Load stages – 750 kgf and 3000 kgf.
• Optical measuring equipment with 14 X magnification.
• Job loading unloading, push button operation, pushing cycle start, de-clamp buttons are only manual operations & rest all is automatic.
• A push button is pressed for cycle start & hydraulic operations. After cycle time, impression is visible on screen, which (Diameter) is to be measured with the help of microscope of least count 0.01mm.
• Computerized model is available .Computerized model has built in CCD and suitable advanced software. Hardness will be displayed on computer monitor automatically. Results printout can be taken.
• Accuracy conforming to IS:2281.
