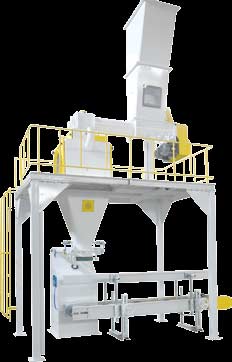

SCOPE OF USE:

Bagging scales are used on the flour / samolina mills to weigh and automatically pack the powdered material with precise screw system. With automatic filling , bag
mouth holder, bag vibrator options, requires minimum labor to pack 10-25-50 kg packing options. Consists of three main parts: Two-speed screw feeder Regulation of full flow and dribble flow with an electropneumatically controlled flap Electropneumatically controlled stop gate for precision cut-off of product and accurate weighment.

Weigh hoper suspended on electronic load cells with
electopneumatic double flap discharge doors
Easily accessible doors for inspection and service
Bag clamp with pneumatic operator
Electronic control unit with specially designed PLC control
Accuracies of +/- 50 grams on 50 kg bags can be achieved
One or two regulation system for customer needs
Suitable for bagging of materials in open mounth bags
Accurate and quick weighing with load cells
Programmable set values with 10 gr intervals
Programmable desired number of bags
Seperately programmable high and low tolerance values
Alarm functions for out of tolerance weighment
Level control in the regulation bin
12-20 ton/hour bagging capacity depending on the product
Display of total number of bagged and total weighed materials
Easy and practical calibration
Alarm function for the faults
Display of the fault message at the operator terminal
