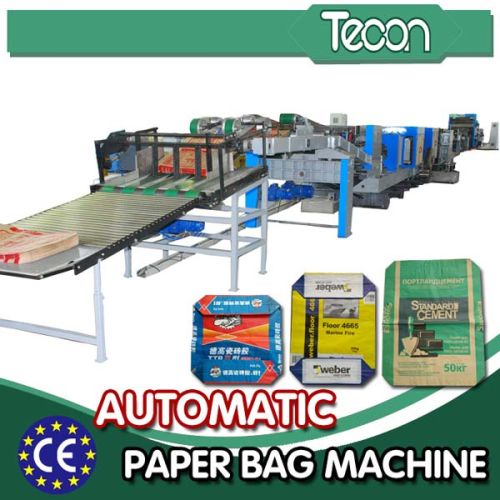

Automatic Paper Bag Making Machine

We offer Bottomer Machine (Bottom-pasted bag making machine).
Tecon Package Machinery CO.,LTD is a high-tech equipment manufacturer.We designed the first production line for paper bag 20 years ago,that’s is about 1996,and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of  bottom sealed paper bag.
The leading product of our company is the “high-speed automatic bottom-pasted bag making machine”.  It is composed of a tuber machine and a bottomer machine.
Features of our full-automatic paper bag production line:
1.Flat & glued bottom with filling valve;
2.Different types for cement, chemicals, foods, tea, etc.
3.4-color automatic printing
4.2~4 paper layers, with one extra PEPP film available
5.35~50 million bagsyear
6.Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7.Full technical service for installation, training and maintenance
8.Full solution for factory construction and materials purchase.
Technical parameters of our production line:
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
Working hour 22 hoursday
Design temperature 0~40℃
Design humidity MAX. 95%
Number required 1 unit
Model name HD4916BD
Performance
HD4916BD
Speed MAX 80 bagsmin
Tube Width 380～620 mm
Bottom Width 80～160 mm
Valve Sheet Length *Width （100-300）﹡（120-340）adjustable
Bag Length 390～1020 mm
Bottom Center Distance 290～860 mm
Number of ply 2~4paper+1 PPPE
Strength sheet unit YES
Strength sheet length *width （270～520）﹡（80～160）
Main Drive Motor 35KW
Machine size 23.5﹡2.3﹡1.8（M）
Machine weight N34（T）
