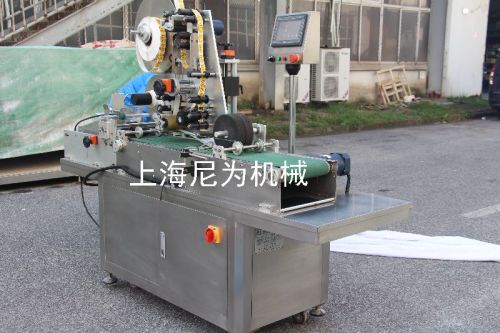

Automatic Paper Labeling Machine

We are a reliable name when it comes to high quality Automatic Paper Labeling Machine at competitively low prices. To easily organize and stack the entire lot of products in our warehouse, we have installed an automated warehousing system. It is supervised by our warehousing experts.

Labeling process :
Automatic paging labeling machine is used to cards,paper,plastic bags,etc,paging automatically first,then labeling accurately,which can realize the labeling of the the plane at any position, intelligent control, photoelectric track detecting artifacts, automatic labeling.
Features :

• Use SUS304 stainless steel,A6061-T6,etc,as raw materials,adopts numerical control processing production,control components choose the international famous brand - Siemens,panasonic,yaskawa,etc Stability is better,using time is longer,low repair rate.
• High stability,controlled by PLC and photoelectric sensor,stable performance,support 7 * 24 h work continuously.
• The model adopts the modular design,it is convenient to debugging and maintenance,user can add other institutions according to need,satisfy the use requirement.
• Counting, output Settings, multiple sets of parameters (formula), equipment condition monitoring,fault automatic stop device,alarm prompt fault location and help information.
• Label number, production can be very intuitive display on the touch screen for you.Parameter Groups can manage many bottles model parameters for you,each bottle can assign a set of parameters,you can switch between the parameter set.Automatic stop when fault, and display the fault information.

Technical Parameters :

• Voltage - AC220V 50 / 60HZ
• Power - 1.5KW
• Weight:450 Kg
• Labeling speed - 200-300PCS/min
• Labeling accuracy - ± 1mm (Regardless of the package and label error)
• Scope of application -  Flat surface

Suitable labels :

• Stickers, white gration bottom paper
• Paper roll inside diameter Φ76.2mm
• Max paper roll outside diameter Φ420mm
• Bottom of the label paper width16~130mm
• Size of corresponding to the product - 800*900*8(H)
• Work temperature - -10~50^oC
• Environment relative humidity - 15~95%
