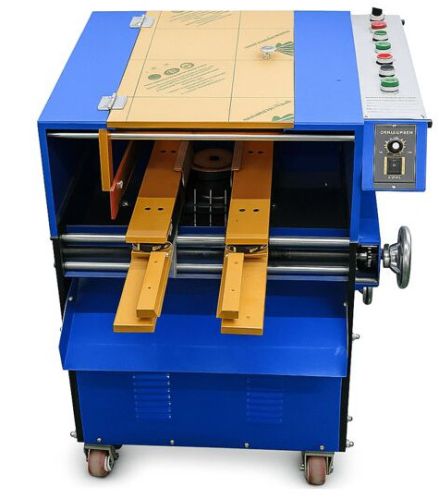

Automatic PCB Lead Cutting Machine – Lc A66

Automatic PCB Lead Cutting Machine – LC A66

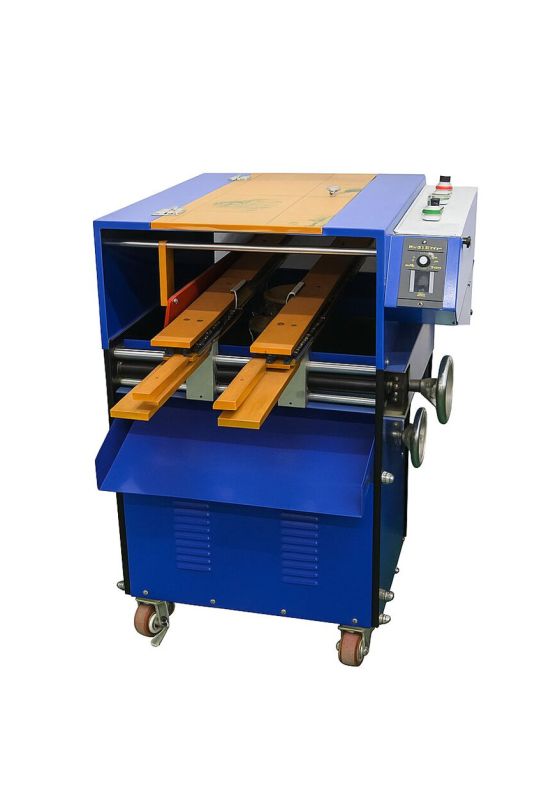

The LC A66 Automatic PCB Lead Cutting Machine by Estovir Technologies is engineered for post-solder lead trimming in high-volume PCB assembly lines. Using a conveyor chain mechanism, the machine automatically clamps and transports PCBs towards a high-speed tungsten carbide blade (LC TC 250) for accurate and uniform lead cutting. Built with a wrap prevention device, it ensures damage-free processing, making it the perfect choice for electronics, consumer goods, and automotive PCB manufacturing. With a spindle speed of 4500 RPM and adjustable conveyor control, the LC A66 delivers unmatched speed, safety, and precision.

Specifications

• Model: LC A66
• Operation Type: Automatic (conveyor-based feed)
• Cutting Blade: LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm)
• PCB Thickness: 0.8 – 2.5 mm
• Max PCB Size: 500 × 300 mm
• Cutting Height: 0.6 mm minimum
• Spindle Speed: 4500 RPM
• Main Motor Power: ¾ HP
• Conveyor Speed: 0–3 m/min (adjustable)
• Power Supply: 220V AC, 50 Hz
• Dimensions: 740 X 565 X 755 mm
• Machine Weight: 115 Kg

Key Features of Automatic PCB Lead Cutting Machine LC A66

• Automatic PCB Transportation
  • Conveyor chain clamps securely hold and transport PCBs into the cutting blade.
  • Reduces manual handling and boosts efficiency in production lines.
• High-Speed Tungsten Carbide Blade (LC TC 250)
  • Equipped with a 250 mm outer diameter, 70 mm ID, 3.5 mm thickness blade.
  • Blades are re-sharpenable, ensuring long-term cost savings and consistent performance.
• Wrap Prevention System
  • Special device prevents bending or damage to PCBs during cutting.
  • Guarantees clean finishing, even on thin and delicate boards.
• Flexible & Adjustable Operation
  • Conveyor speed adjustable between 0–3 m/min for different workloads.
  • Cutting height as low as 6 mm, suitable for multiple PCB thicknesses (0.8–2.5 mm).
• Durable Industrial Build
  • Weighing 115 kg, it is designed for continuous factory-floor operation.
  • Rugged body ensures stability and vibration-free cutting.

Why Choose LC A66?

• Boosts production speed with fully automated PCB handling.
• Guarantees precise, uniform lead cutting for a professional finish.
• Prevents PCB damage with integrated wrap-prevention system.
• Compact, space-saving design ideal for industrial production lines.
• Uses reliable LC TC 250 tungsten carbide blades, ensuring durability.
• Trusted by global electronics manufacturers for quality and efficiency.

Applications of Automatic PCB Lead Cutting Machine LC A66

• PCB assembly lines for consumer electronics and LED products.
• Automotive electronic module production.
• High-volume industrial PCB manufacturing.
• Contract electronic assembly services.

Maintenance & Blade Information

• Blade Maintenance – The LC TC 250 tungsten carbide blade can be re-sharpened using the LC G250 blade sharpening machine, ensuring consistent long-term performance.
• Low Maintenance Design – Built with minimal moving parts and a rugged frame, the LC A66 requires very little upkeep.
• Operator Safety – Manual push-handle feeding ensures safe PCB handling during operation.
