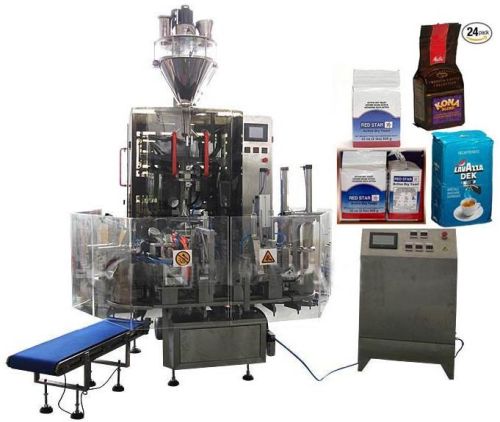

Automatic Powder Vacuum Brick Bag Packing Machine - ( Zb1000a6 )

We are offering Automatic Powder Vacuum Brick Bag Packing Machine - ( Zb1000a6).
The unit of machine including :dt series vacuum elevator ,dt series horizontal type auger conveyor, second material storage hopper ,cjs2000 series auger filling machine,vfs5000f vertical packaging,zb1000 vacuum machine, dust collecting system and product conveyor. According to different material ( granule, powder )the bag can be designed to different size and shape(cuboids/cube).the product seals well, so the product have a long
value time and good looking. The unit of machine realized automatic material conveyor, filling , packaging ,reshaping ,vacuuming, sealing cutting ,product conveying , dust collecting by using the plc and touch screen .the unit of machine is widely used in food, additive, tea ,medicine, chemical industries.
Features�
packaging speed � 8�20bags/min
filling range� 100�2000g
bag size� (50-340)x�80�260�mm�l*b*h�
filling accuracyï¼� â±0.2ï½�2%
air require� 0.6mpa 0.65m3/min
reel outer diameterï¼� î¦400mm
core inner diameterï¼� î¦75mm
machine weight � 2000kg
power ï¼� 5.5kw 380vâ±10% 50hz
