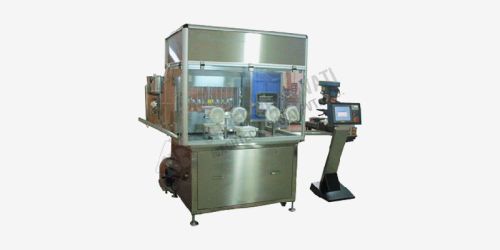

Automatic Pre Filled Syringe Filling

Pre Filled Syringe Filling & Stoppering Machine Model –PFS-SA-10 is very compact and elegant PLC. Based cGMP model for automatic filling and Stoppering operation of pre filled syringe.

Automatic filling cycle start in 10 steps with at a time 10 syringe will fill with help of perisatalistic pump or ‘valve lees syringe ‘.

THEN

Operator has to keep a nest (tray) of 100 pre-filled syringes over the SS jig. Then he has to put a plug tray with suitable stoppers over the SS-316 plug tray. Then after he has to close the evacuation and Stoppering chambers. Now he can start the machine.

Automatic Stoppering cycle start one by one as per the programmed Stoppering cycle mentioned as under. 100 stoppers are plugged into the pre-filled syringes precisely after vacuum hold cycle. Now last cycle of nitrogen flushing with vacuum break completes the Stoppering operation. Program cycle for evacuation and Stoppering.

• Pre Evacuation in the chamber
• Nitrogen flushing.
• Vacuum Evacuation in the chamber
• Nitrogen flushing.
• Vacuum Evacuation repeats.
• Nitrogen flushing repeats.
• Vacuum creation with hold.
• Plunging of stoppers inside the pre-filled syringes
• Nitrogen purging cycle with Vacuum break.
