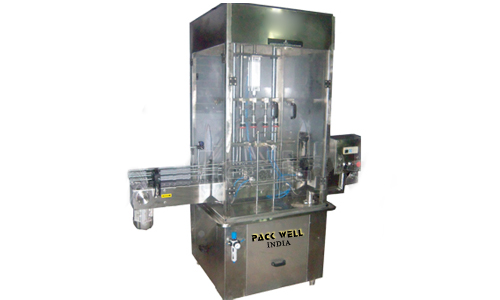

Automatic Pressure Over Filling Machine

• 304 Stainless steel heavy duty stainless steel welded C frame.
• 20 Gallon stainless steel overflow tank.
• Stainless steel cover for overflow tank.
• 20 hose 304 stainless steel feeding manifold.
• All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
• Special seals or hoses by order.
• Calibrated guide for fast height changeovers.
• Machine mounted on 4 heavy duty casters.
• Leveling of machine by 1 inch 304 stainless steel leveling screws.

Control panel features :
We supply a semi-automatic crimping machines that provide ‘Can push’ operated-auto-return for positive crimping. Our crimping machines are known for their qualitative features like quick setting crimp-diameter, crimp-depth and auto-adjustment.

• Suitable for all type of aerosol cans these are offered at economic prices.
• Operating air pressure : 6 to 8 kg. / Sq. cm.
• Capacity : Approx. 4000 Units/Shift (Depending on operator's skill).

Main components features :

• 96 Gallon per minute, 1 Hp, 3phase, 316 stainless steel centrifugal pump.
• Hardened Stainless steel calibrated shafts with linear bearings for nozzle rack movement smoothness and durability.
• 8 inch stroke air cylinder with magnetic sensors for nozzle up and down movement.
• 316L Stainless steel sanitary check valve mounted on pump.
• Hand wheel and shaft mounted stoppers for height and stroke adjustment.

Electric and pneumatic requirements :

• 110 Volts, 60Hz, 15 Amps.
• 5 CFM @ 80 p.s.i.
