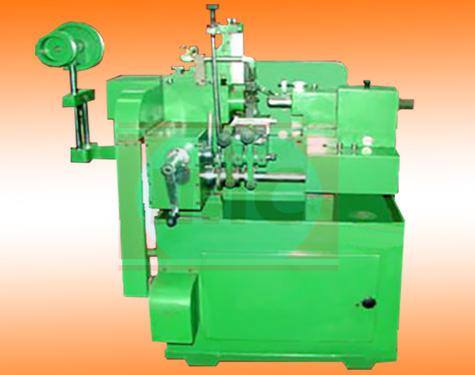

AUTOMATIC REBAR COUPLER DRILLING AND CUTTING MACHINE
The Automatic Rebar Coupler Drilling and Cutting Machine is used to drilling and cutting the rebar coupler according to the desired length required. The drilling and cutting of the rebar couplers are normally in 2~3 minutes. This Rebar Coupler Drilling and Cutting Machine is used for high speed coupler making process.
Automatic Rebar Coupler Drilling and Cutting Machine they are building is made up the best quality raw material, using the best and latest technology and the most advanced machine just to make this machine work for long years without any symptoms of the system crash or malfunction. Owing to the unstoppable qualities of our hydraulic surface grinder machine-like being best in accuracy, durability, efficiency, compatibility, reliability, handiness and extremely low maintenance cost we have become a very well-known company in the field of industrial machine manufacturing.
| MODEL NO. | IMC-ARC-25 MM | IMC-ARC-32 MM | IMC-ARC-40 MM | IMC-ARC-50 MM | IMC- ARC-60 MM | IMC-ARC-70 MM |
| Max. Capacity Round Bar | 22 mm | 30 mm | 37 mm | 47 mm | 56 mm | 65 mm |
| Hexagonal | 22 mm | 25 mm | 32 mm | 47 mm | 56 mm | 65 mm |
| Square | 18 mm | 24 mm | 27 mm | 36 mm | 42 mm | 45 mm |
| Maximum Turning Length | 40 mm | 45 mm | 50 mm | 60 mm | 70 mm | 76 mm |
| Maximum Drill | 40 mm | 50 mm | 55 mm | 60 mm | 65 mm | 70 mm |
| Electric Drive Motor | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP | 7 HP |
| 1440 RPM | 1440 RPM | 1440 RPM | 960 RPM | 960 RPM | 960 RPM |
