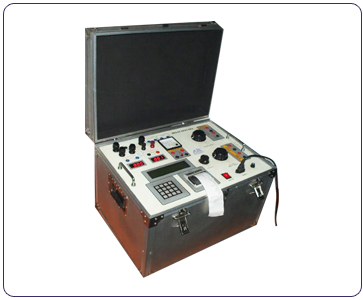

Automatic Relay Tester

Features :

• Potential -Free start and stop signal
• Continously adjustable outputs
• Portable Models
• Automatic Self Sensing of Contacts, i.e. NO /NC
• Digital ammeter, voltmeter and time interval meter (UniTimer)
• UniTimer automatically puts OFF the output, when timer reaches to its maximum value of the selected range to ensure safety of the instruments as well as the item under test. Wide range of measurement, i.e. from 1 millisecond.
• To 9999 secs In four ranges.

APPLICATIONS
The protective devices such as relays, overload coils, circuit breakers must be checked regularly to ensure that, they are always ready to operate correctly. If a fault occurs in the equipment, which they are protecting, routine relay testing will quickly detect the faulty, incorrectly adjusted protection circuits correctly. It is usually necessary to measure its operating time. The micro controller based time interval meter is used for this purpose in all AJIT brand relay testers.

Technical Specifications :
Input Supply : 230V, AC, + 10% single phase.
Metering : a) 3 ½ digit, ammeter / voltmeter b) micro controlled based time interval meter
Range : 0-9.999 - 99.99 - 999.9-9999 sec selectable by a push button.
Display : 4 digit LED Type.
Protection : Fuse /MCB, Over current protection.
