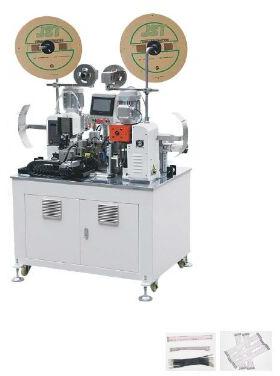

Automatic Ribbon Wire Crimping Machine

Power4000 W
ApplicationAutomatic Cutting Stripping & Double End Crimping Machine for Ribbon Wires
MODELPRV-WP-SP20 Automatic Ribbon Wire Crimping Machine
Max number of cores20
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

ApplicationAutomatic Cutting Stripping & Double End Crimping Machine for Ribbon Wires
Power4000 W
Stripping LengthA. 0 ~ 7 mm B. 0 ~ 9 mm
Current Rating15 A
Max Wire Width20 mm
Machine Size1800 mm x 1400 mm x 1550 mm
Shearing Length55 – 850 mm
FeaturesConsists Panasonic Motors and Servo Drives to achieve Precision, Speed and Stability, Touch Screen to control Length and Crimping Controls .
Wire TypeAWG # 28 ~ AWG # 18
Special FunctionCan have back end as full/ half
Pressure0.4 ~ 0.6 MPA
MODELPRV-WP-SP20 Automatic Ribbon Wire Crimping Machine
Suitable WireElectronic Wire
Production Speed22000 Crimps/Hr
Max number of cores20
Power Source50 Hz AC 220 V
Single Wire Dia0.8 ~ 2. 0 mm
