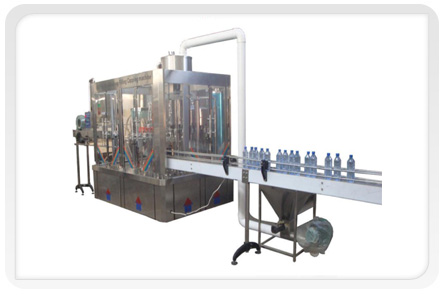

Automatic Rinsing Filling Capping Machine

PET bottles rinsing/ filling / capping three-in-one machine is dedicated to the mineral water, purified water and other non-carbonated beverage filling. the advanced models. The aircraft targeted a transmission of bottle neck; only minimal changes to transform pieces can be applied to a variety of sizes of the format, the greatest extent possible reduction of wear and tear on the bottle, a smooth transfer. Filling approach to micro-gravity vacuum filling, increase the speed of filling, the filling can be precise control level. Health-circulation lines for product quality to provide a reliable guarantee.
?Frame: The main structural is carbon steel with paint, and the surface are 304 stainless steel cladding, and adjustable foot of stainless steel
?The part of rotary bottle rinsing The number of rinsing nozzle is 18, and the washers are stable and reliable, high-efficiency
?The part of Rotary filling The number of filling valve is 18, and the parts of contacting products are 304 stainless steel materials. Filling tank of both internal and external surfaces are deal with mirror polish.
?The part of rotary capping The number of capping is 6, and the level of cap-covered grounds, with no damage to the caps’ surface, covered hopper with less automatically send signals to the aircraft shelters, with auto-cover feature.
?The part of cap elevator The domestic well-known motor and reducer, 304 stainless steel cover, reducing the cap on the secondary pollution, 304 stainless steel cover under capping, covered warehouses and covered under a covered slot with electronic uncovered detection system, automatic control sending capping machines and the whole operating speed. Do not send bottles can be realized without cover, not covered under the cover automatic shutdown.
?Power system Frequency Control, the various sports bodies are pieces of gear transmission, a smooth operation, all-round loser bottles for engineering plastics components, with security agencies.
?Control system and operation panel Electronic sealed boxes, 304 stainless steel,inverter, AC contactor,and switch components

250 -- 1500ml
Range of bottle diameter: 50 — 92mm
Range of bottle height: 140 -- 330mm
Inner diameter of the bottle neck: 20 -- 30mm

XGF 18/18/6
X ---- Rinsing Machine
G ---- Filling Machine
F ---- Capping Machine

Composition ——(rinsing) , ——(filling) ——(capping) ,——(Air driving)
Body machine ——(electric) , ——(electric box) , ——(working platform), ——(main transmission) , ——(frame) , ——(Chain box and entering and exiting arc board)

Valve quantities of filling: 18 pcs
Quantity of capping: 6 pcs
Quantity of rinsing: 18 pcs
Capacity: 500ml (6000b/h--7000b/h), 1000ml (3000-4000b/h) 1500ml (2000b/h--2500b/h)
Can suits for your different bottle size, no need change mould if the bottle neck is same.

Main power: 2.2KW
Filling pump:0.55kw
Cap unscrambler:0.25kw
Air blower: 0.75kw
Conveyor motor: 0.55kw
Automatic cap loader: 0.8kw ( motor 0.25kw, air blower:0.55kw)
Working Voltage : 380V 50HZ, 3 phase

LxWxH : 2600x1800x2520mm
Weight of equipments : 2000Kg
