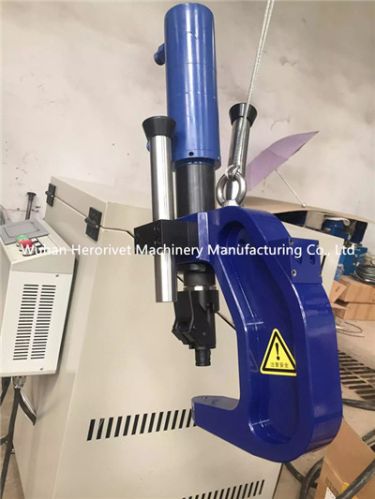

Automatic Riveting Machine Self Piercing Riveting Tool

Advantages of self-piercing machinery
a. Special purpose rivet with special rivet carry belt.
B. No need to drilling holes, no wast and no iron scrap occured.
C. Self-piercing processing allowed , non metallic sandwich materials.
D.no thermal stress concentration and no damage to the surface coating.
E. High dynmic strength and far superior to the tradional spot welding.
F. The self-piercing forming by special die with stamping and processed quality is stable.
G. By check the riveting point geometry size can judging the riveting quality.
H. No damage to plating or coating and no need after painting or plating.
Technical parameters:
� maximum pressure 50kn
� working pressure 31.5mpa
� riveting frequency 15-25 times min
� rated flow 18 liters min
� throat depth 80mm
� opening size 30mm maximum 60mm
� power 4kw
� clamp body weight 20kg
� machine weight 180kg
� fuel tank capacity 100 liters
� control mode handle
� pressure display yes
� balancer yes
