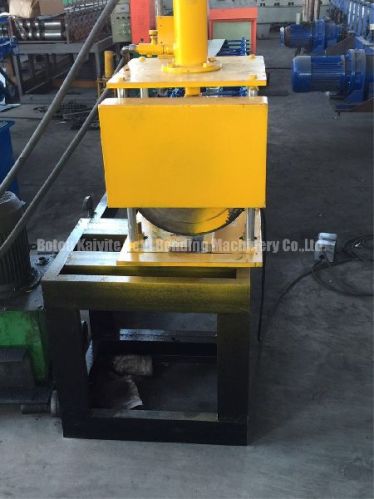

Automatic Roller Shutter Slats Cold Forming Machine

Automatic Roller Shutter Slats Cold Forming Machine The automatic roller shutter slats cold forming machine is fully automatic to produce the shutter door . Thethickness is usually 0.3-0.8 mm . Normally we adopt the hydraulic cuttingsystem . But some client choose fly sawing . Both cutting system is ok , wewill produce according to your requirement . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand 1. Roll shutter door forming machine can prevent rainwater infiltrated2. Fire resistance rolling shutter door also have function of fireproof3. High efficiency, energy saving, can be used continuously4. Roll shutter door forming machine use PLC and inverter controller5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness :  0.3---0.8mm Material width : 100 - 160 mm(according to the profile) Diameter of shaft : 75 mm Roller Station : 10 - 15 steps Sidewall Thickness : 14 mm Main frame :400 H steel Motor Power : 4 + 3 kw Forming speed : 10 -  20mmin Forming rollers Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm Hydraulic cutting system It adopts the hydraulic drive and automatic.
