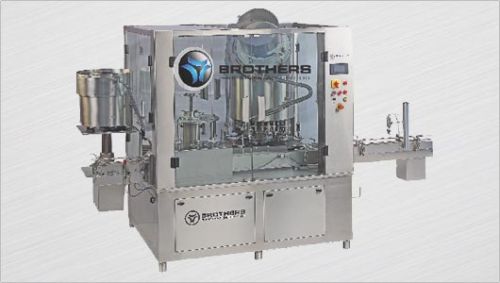

Automatic Rotary Monoblock 8x8 Bottle Plugging & Capping Machine

Get Latest Price

Power :3.0 H.P.
Electrical :415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Cap Size :Upto 32mm*
Conveyor Height :850-900 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

BROTHERS PHARMAMACH (INDIA) PVT. LTD.

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1965

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Electrical :415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power :3.0 H.P.
Overall Dimensions :3000 mm (L) x 1300 mm (W) x 2200 mm (H)
Conveyor Height :850-900 mm
Bottle Height :300mm* Maximum
Plug type/size :Required actual
Speed :Max. 120 Bottles per minute depending on Bottle, Plug and Cap Size
Cap Size :Upto 32mm*
Bottle Size :Diameter Up to 85mm* or other Shape bottle with proper base

CAPSEAL-120MB- Automatic Rotary Monoblock 8x8 Bottle Plugging & Capping Machine

The Automatic 8x8 Head Rotary Monoblock Bottle Plugging & Capping Machine Model CAPSEAL-120MB suitable for applying Plasitc Plug as well as ROPP or Plastic Screw Cap on various type of Bottles. Machine is suitable for Round or other shape of Glass, Plastic, PET, LDPE, HDPE Bottles with maximum speed of 120 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape, Plug type/size and Cap Size. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures. The Capping Machine is ideal for application in Pharmaceutical, Food, Pesticides, Cosmetic & Other Industries.

The Machine is equipped with Vibratory Plug Feeder and Orientation type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continues feeding of Plug and Cap for online operation on any liquid of powder filling line. Machine suitable for various sizes of Bottles, Plug and Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.

SPECIAL/OPTIONAL* FEATURES :

No Bottle - No Plug, No Cap System
No Plug - Cap - Machine Stop System*
Machine construction in Stainless Steel Finish
Infeed and Exit Star Wheel with Overload Clutch System to avoid Bottle breakaxe
Single Drive Synchronizing Total Operation of Star Wheel and Turret with Star Wheel
Cap Feeder with Variable Speed System for feeding control of caps.
Minimum Change Over and Setting time
Hopper can be completely dismantle for easy cleaning
Various safety features including Clutch system to avoid Bottle Breakage
Single Drive synchronizing operation of Conveyor and Star Wheel
Minimum Change over time
