    Automatic Rotary Monoblock Volumetric Liquid Bottle Filling Machine

    • Bottle Height :50mm to 200mm*
    • Speed :Max. 80 Bottles per minute depending on Fill Volume and type of Liquid
    • Conveyor Height :800-850 mm
    • Accuracy :+/- 1% Depending on Liquid with Single Dose
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 15 Years
    • building Nature of Business Retailer
    • Year of Establishment 1965

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Syringe Fill Range :15ml to 120ml,30ml to 250ml or 250ml to 500ml on Special Ver.
    • Power :2.5 H.P.
    • Electrical :440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz)
    • Cap Size :18mm to 55mm ROPP or Plastic Screw Cap
    • Fill Range :15ml to 120ml or 30ml to 250ml*
    • Bottle Height :50mm to 200mm*
    • Accuracy :+/- 1% Depending on Liquid with Single Dose
    • Overall Dimensions :2400 mm (L) x 1250 mm (W) x 1550 mm(H)
    • Conveyor Height :800-850 mm
    • Speed :Max. 80 Bottles per minute depending on Fill Volume and type of Liquid
    • Bottle Diameter :28mm to 70mm*

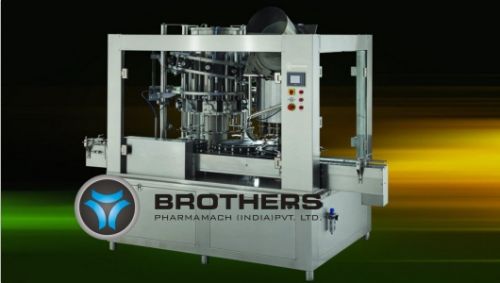

    The Automatic Rotary Monoblock 8x8 Head Volumetric Rotary Bottle Filling and Capping Machine, Model LIQFILL-80MB is suitable for Round, Oval, Flat or Square Bottles with maximum speed of 80 Bottles per minute. Machine with Rotary operation of bottles resulting in smoother movement of bottles at lower speed producing higher output. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless Steel finish including M.S. Frame structure with SS304 cladding. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS 316 Materials.

    Machine works on Volumetric Piston Filling principal which fills Liquid into the bottle with High Level of Fill Accuracy of liquid in each bottles. Machine suitable for Filling Phamaceutical products, Oil, Mouth Wash etc.


    SPECIAL FEATURES :


    • No Bottle - No Fill System, No Bottle - Machine Stop System
    • Rotary Bottle Movement system for smoother operation
    • All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
    • Machine construction in SS 304 material
    • Very High Fill Accuracy
    • Automatic Infeed and Exit of Bottles
    • Minimum Change Over time
    • Filling and Capping operation in Single machine due to Monoblock design
    • Built-in A.C. Variable Freq. Drive System
