Automatic Rotary ROPP Cap Sealing Machine, Specialities : Corrosion Resistant

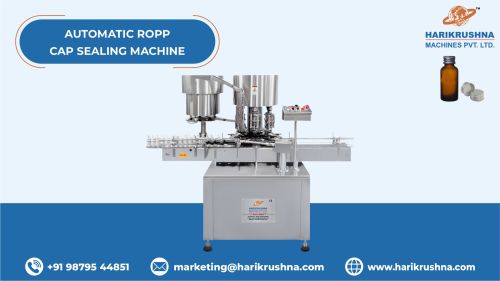

Automatic Rotary ROPP Cap Sealing Machine

The Automatic Rotary ROPP Cap Sealing Machine consists of a main structure, product transmission belt with an adjustable guide, in-feed screw, star plate, sealing heads, vibratory bowl for caps, cap delivery chute, product's height adjustment screw, safety acrylic cover (OPTIONAL), electrical panel, motor, sensors & AC drive.

Key Features

•  The Ropp Cap Machine is manufactured or developed accordance with GMP standards.
•     Rigid vibration free construction for trouble free performance.
•     SS Elegantly matt finished body.
•     Electro less Nickle plating or MS powder coating of all exposed parts to ensure long life and resistance against corrosion.
•     No bottle no cap arrangement.
•     Single motor synchronizes conveyor, star wheel, & platform turret.
•     Adjustable height of conveyor belt to align with other machine of the line.
•     Sealing pressure can be varied to suit different gauges and size of caps.
•     No cap in chute vibrator on & Machine Stop.
•     There is a special designed vibratory bowl and chute with no cap sensors for continuous flow of the cap.
•     Clutch Overload – Machine Stop.
•     Low noise level, low power consumptions.
•     Spring loaded pin in the center of capping die. (ROPP)
•     Manually adjustable (increase & decrease) mechanical torque (magnetic clutch) heads system. (ROPP Capping)
•     Fix set pin for star plate & in-feed screw.
•     Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying.
•     Star wheel & Guide MOC: UHMW–NYLON.
