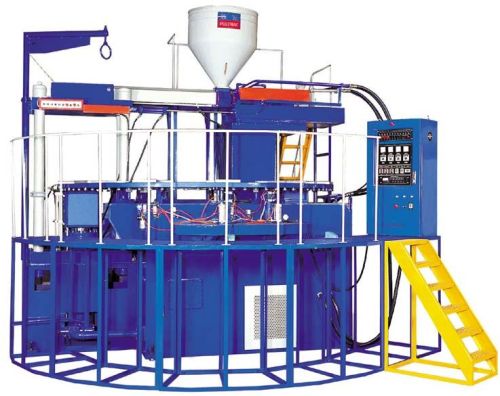

Automatic Rotary System Plastic Long Boots Injection Molding Machine

We are named as a famed Two Color Automatic Rotary System Plastic Long Boots Injection Molding Machine (R-122) Manufacturer, Exporter, and Supplier in Taiwan (Taichung). Having automatic rotary system, the Automatic Rotary System Plastic Long Boots Injection Molding Machine is suitable for making single and double color foaming or non-foaming PVC boots for gents, ladies, and children.

Hydraulic System :

• Screw stroke and screw driving is controlled by hydraulic motor.

• Injection System is controlled by two steps pressure.

• Moveable injection unit controlled by hydraulic sustem, easy for screw cleaning.

• Powerful mould clamping equipment.

• Rotary table is driven by hydraulic motor in two speed controlling, stable and efficient.

 Operation :

• Fully automatic operation, no specialist required.

• Separate heating and control circuits for 4 zones on the screw cylinder. Keep the material melting well.

• Fully automatic material feeding controlling system and capable for selecting the exact mould operating.

• Material feeding controlled by back pressure valve, easy in adjusting material density.

• Mould clamping system controlled by pressure switch. There are powerful mould clamping force for shaping perfect products.

• Auxiliary pneumatic type for disengaging products, easy to pick products from mould.

• Safety reversing switch for all machine operation.
