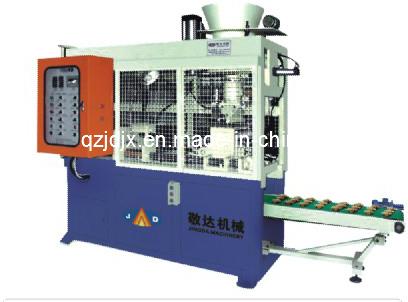

Automatic Sand Core Shooting Machine

We are offering automatic sand core shooting machine,
jd-361-z automatic core shooting machine
this is a kind of sand core shooting machine. You can choose coated resin sand(dry) or furan resin sand(wet). Shoot the sand into the mold cavity, and through the heating of the mould, it could make out the sand mould or the shell mould at the soonest.
details:
device: plc control
operation: driven by air pressure
operating functions: manual, senmi-auto, full-auto(with conveyer belt)
two optional sand state: coated resin sand(dry). Furan resin-sand(wet)
electric heating: automatic thermostat(dynamic mode, static mode can be an independent temperature control)
clamping stroke: 300mm
top lock stroke: 30mm(dynamic mold is in mechanical type, static mould is in penumatic type)
maximum center distance of abrasive perforating: 320mm
working pressure: 0.5-0.7mpa
theoretic time for full-round operation: 30-60 seconds
theoretic maximum quality of sand core: 4000g
dimensions(l*w*h): 2700mm*1280mm*2000mm
specifications
1)passed iso9001: 2000
2)competitive price
3)top product quality
4)prompt delivery
shoot core sample
on technology,
we constantly innovate, and strive to high-tech and high quality;
on the process,
we strive for perfection, breakthrough tradition and strive for excellence;
on management, we emphasize science, pursue internationalization management concept;
on the service,
we adhere to the principles, advocate the unique principle of "customer first";
company tenet:
"carefully manufacture, meticulously design, sincerely serve" for the purpose.
