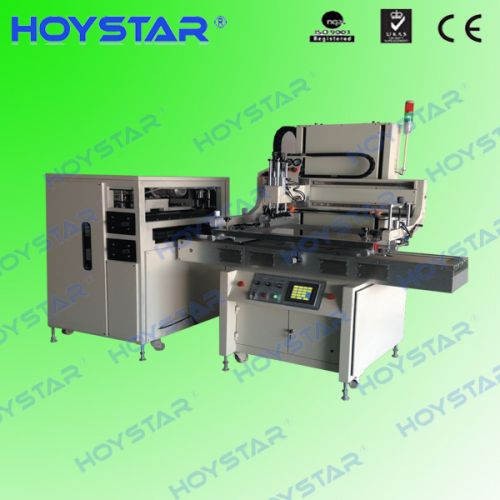

Automatic Screen Printing Machine

We are offering automatic screen printing machine for steel sheet.
application
it is suitable for printing kinds of thin hard materials flat surface items such as glasssteelaluminum sheet,pcarylic board,pcb plate,pvcpe film,nameplate,signage.etc
features:
1.plc program controller + touch screen panel
2.you can set the different product-loading speed according to different printing material.
3.electro loading mechanical hand, motor drive+linear guide oriented,accurate positioning
4.vacuum sucker taking product,strong adsorption and not stripper
5.vertical structure,screen frame vertically lifting,printing stroke is left and right horizontal scraping
6.fix position adopt servo control,printing worktable adopt fix postion automatically and vac-sorb, which in order to printing more precision
7.updown or leftright printing adopts variable frequency motor driving,printing oriented adopts linear guide
8.worktable is vacuum,low noise.automactic unloading conveyor belt,it can improve work efficiency
9.printing worktable adopts high hardness cast aluminum
10.printing frame can be adjusted slightly on x.y diection
11.printing program has three models,manualsemi-automaticautomatic,you can choose it according to production needing
12.scraperink-reclaiming blade angle can be adjusted freely
13.power off system and security protection can meet internationalsafety and environmental standards.
Technical parameter
1.max.printing area:400*600mm
2.max.printing speed:1000pcshr
3.power:220v 380v
4.air pressure:5-7bar
5.worktable size:500*800mm
6.max.sreen frame size: 500*800mm
7.max.workpiece height:10mm
8.machine size: 3200*1200*1800mm
9.weight: 850kg
