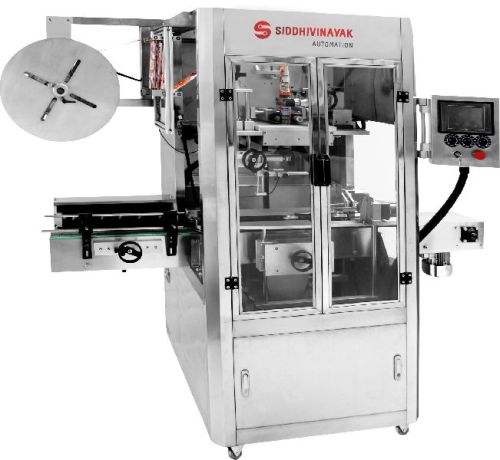

Automatic Sleeve Applicator, Labelling Sleeves

Name: Automatic Sleeve Applicator
Price: 1100000 INR
Availability: InStock

₹ 11 Lakh / Piece

Company Information

Ahmedabad, Gujarat

5.0/5

(1)

Ask for more detail from the seller

Report incorrect details

ConditionNew
Automatic GradeAutomatic, Fully Automatic
Power1-3kw
ApplicationLabelling Sleeves
CertificationCE Certified, ISO 9001:2008
Label MaterialPVC, PET, OPS, PLA
Sleeve Roll Inner Dia.>4” (101.6mm)
Output/Min*Up to 100, Up to 200, Up to 300
Container Sizeø28mm – ø125mm, 320mm Height Max.
Sleeve Labe Roll EmptyMachine stop with Alarm.
Missing Sleeve LabelMachine stop with alarm or online pneumatic operated product rejection system.
ModelSVSSA 100, SVSSA 200 , SVSSA 300
Change Parts(A) Center Pillar (B) Worm © Cutter
Sleeve Roll Outer Dia.400mm
Thickness of Sleeve0.035mm – 0.75mm
Length of sleeve30mm – 250mm
Height of Conveyor860-910mm
Tower LightIndicate the status of process.
Electrical Rating1.5KW-2KW, 380V AC, 50/60HZ, 3-Phase

Silent Features :

Rigid Structure constructed S.S. and anodizing aluminum alloy.
Fully automatic machine with speed up to 300 BPM.
No bottle no sleeve.
Statics Charges elimination system for accurate sleeve placement.
Totally PLC Control system.
No Tools required for changeovers from one size bottle to another.
Servo based high speed with accurate length sleeve feeding and rotary sleeve cutter system.
Online speed can vary & fully synchronized with all mechanism.
Suitable for various shape of Glass, Plastic, Pet, Tin, Corrugated Containers.
Online Printer
