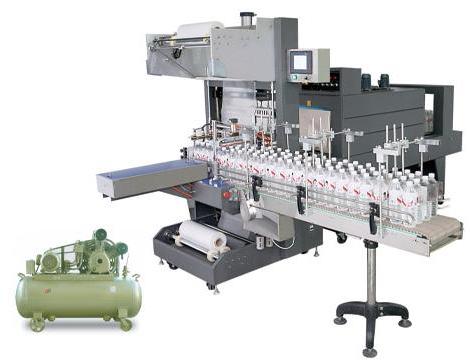

Automatic Sleeve Wrapper, Pe Film Shrink Packaging Machine

We are offering automatic sleeve wrapper, pe film shrink packaging machine.
characteristic:
• the machine adopts the advanced touch screen system for man-machine conversation, ‘schneider’ programmable logic controller (plc), ‘airtac’ air-jar, and all the rest parts adopt international famous brand.
• up and down magnetic switch prevent sealing mistakes, and protect the operators.
• ‘schneider’ plc, ‘schneider’ ac contractor, and intelligent temperature controller performs stable.
• large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
• up and down large power fan system ensures the excellent effect of shrinking in one time.
• super cooling system cools the packing and makes the figuration perfectly.
specification
model qsj-5040a model bse6040
voltage 220v, 50-60hz power supply 3phase 220v/380v 50-60hz
power 3kw heater power 27kw adjuster
capacity 0 - 10pcs/minute conveyer speed 0-10m/minute
working air pressure 4 - 6kg/c㎡ tunnel size(l*w*h) 1800*600*400mm
width/thickness of the film max. 590mm/0.03 - 0.25mm conveyer loading 25kgs max.
Max. Packing dimension(l*w*h) 500*300*400mm machine size(l*w*h) 2800*880*1570mm
min. Packing dimension(l*w*h) 250*50*100mm machine weight 285kgs
machine size(l*w*h) 1,060*1,600*1,930mm shrink film pe,pof,pvc,pp
machine weight 370kg
