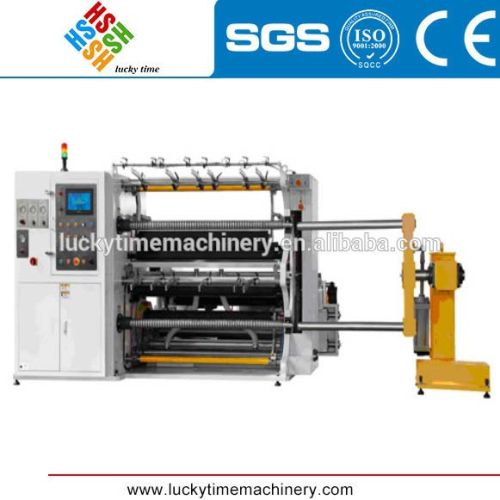

Automatic Slitting Machine

Offers automatic slitting machine.
Article 1, advantages of our machine.
1. Plc (panasonicjapan)centralized control motor system, according to the slitting technological requirements, it is set up parameters by touch screen which also monitors the working status. Control system has the function of lifting and dropping with a fixed speed, stopping against pine, metered fixed-length, preserving parameters with easyoperation.
2. Shaft-less hydraulic rotating unwinding frame, 6” cone top type clamping; independent hydraulic power system, unwinding positioning automatically; match with pneumatic suck cutting table on unwinding part
3. Rewinding imported differential slip shaft, electric-gas proportional valve (smcjapan) control sliding force
4. Side arm type rewinding, match with unloading device, easy operation
5. Manualand pneumatic rewinding press roller, adjust pressure according to different materials
6. Razor cutter slitting adjusts to different quality materials.
7. Main electronic pneumatic components adopt imported famous brand products whose function is stable and reliable.
article 2,main technical specification
applicable slitting materials bopp,cpp,pet,pe,paper composite film,aluminized film,rolling material and so on
slitting materials thickness 0.012—0.15mm
unwinding diameter φ800mm
unwinding width 1300mm
slitting accuracy ±0.3mm
slitting width 1300mm
rewinding diameter φ600mm
total power 18kw
supply voltage ac 380v (three-phase five line).
