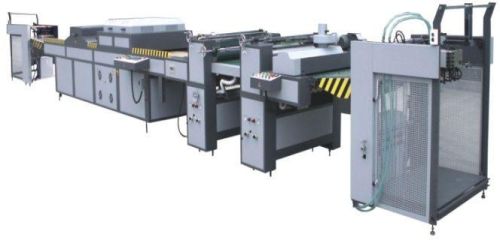

Automatic Small UV Coating Machine (VSGL-1000-1200A2)

Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

The company has expertise in importing, exporting & supplying of Automatic Small UV Coating Machine (VSGL-1000-1200A2). The Automatic Small UV Coating Machine (VSGL-1000-1200A2) is designed with complete precision and accuracy by a team of experienced engineers. The Automatic Small UV Coating Machine (VSGL-1000-1200A2) we supply is assured to offer optimum performance and high productivity.

View More Details

Send Enquiry

Product Details

Specifications

Model	VSGL-1000A2	VSGL-1200A2
Max. Sheet Size	950x780mm	1150x780mm
Min. Sheet Size	340x280mm	340x280mm
Max. Coating Size	950mm	1150mm
Sheet Weight	80~600g/m²(with air-knife) 200~600g/m²	80~600g/m²(with air-knife) 200~600g/m²
Max. Feeding Speed	8000PCS/h(thick paper) 4000pcs/h(thin paper)	8000pcs/h(thick paper) 4000pcs/h(thin paper)
Total Power	65kw	65kw
Weight	5000kg	5500kg
Dimension	14000x1880x1710m	14000x2080x1710mm
