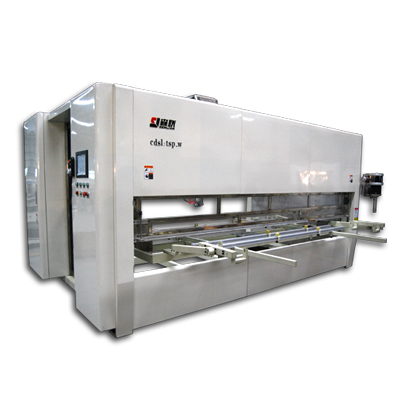

Automatic Spray Painting Machine For Furniture, Door

Automatic spray painting machine for furniture, door
function: it is equipped with many advanced precision hardwares and most intelligent five-axis spray system which can easily spray painting each side of board and feed or turn-over all by itself, ensure highly uniform film without any sagging of paint.
It can automatic work continuously and stable for 24 hours without stopping, helpful to save paint and increase efficiency more than 30% on record, which can instead of manual spraying for good and all.
Â�¢ application filed:
furniture, door, wardrobe, cupboard, decoration, etc.
Â�¢ application board:
solid wood board, ply, mdf, mfc, pb, etc.
Â�¢ application paint:
uv, pu, pe, special paint, etc.
Technical parameters
max working width 1200mm
max working thickness 150mm
working length 300-20002400mm
speed of spray gun 0-1500mms
paint pump plunger type, 1:30
caliber of spray gun î¦1.0-1.5mm
angle of spray gun 0-20 degress
air pressure 0.6mpa
communication cable 0.2mm
full power 3.7kw 380v
estimated weight 2200kg
overall dimensions 4200*2400*2500mm
main parts
servo electric motor delta
air pressure aintac
communication cable helukabel from germany
linear guide rail thk from japan
spray gun graco from america
paint pump graco from america
electrical appliance schneider from germany
control system 1004c high speed spray and five-axis system, lcd screen
