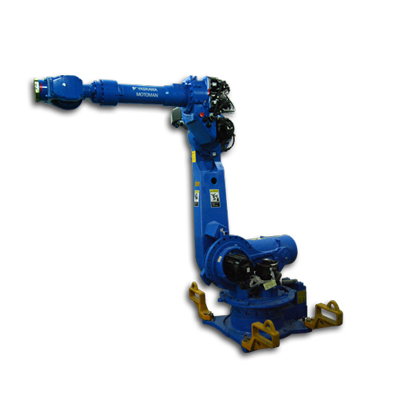

Contact SupplierAutomatic spray painting robot
function: it applies robot arm which equipped with spray gun to meet painting a wider variety of products. This robot arm is simulated intelligent control that can spray painting any angle in any movement flexible, and the accurate guaranteed by programmable controller.
It is very useful to deal with special board or whole unit product that save paint and increase efficiency more than 30%.
Â�¢ application filed:
furniture, door, wardrobe, cupboard, bed, chair, decoration, etc.
Â�¢ application paint:
uv, pu, pe, special paint, etc.
Technical parameters
working vertical distance 5585mm
working horizontal distance 3106mm
repeat location precision â±0.15mm
freedom degree 6
paint pump plunger type, 1:30
air pressure 0.6mpa
loading weight 20kg
full power 5kw 380v
estimated weight 800kg
overall dimensions 1550*1720*2000mm+600*450*1030mm+680*780*1050mm
main parts
servo electric motor yaskawa from japan
air pressure aintac
spray gun graco from america
paint pump graco from america
electrical appliance yaskawa from japan
