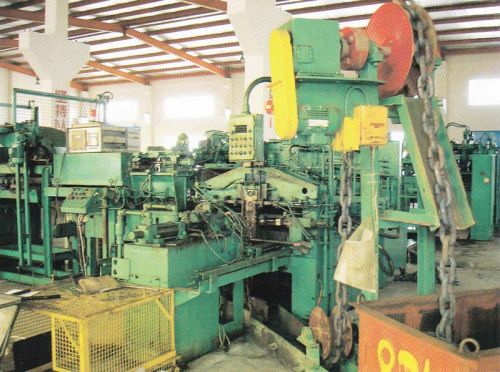

Automatic Steel Chain Bending Machine

We are offering automatic steel chain bending machine,
bj360 model chain bending machines is following the advanced technology from germany and our independent development,is full automatic hydraulic hot bending machine,the machine includes:rod material automatic feeding system;rod material automatic intermediate frequency heating system;rod material transmission system;rod material fixing system;automatic mechanical arm rotating system;chain link shift moving system;mould core;bending type slider basement system;chain feeding and clamping system;hydraulic bending system;plc electrical system.
technical data
model bj360
rod material length 220-480mm
chain link length 56-146mm
motor power 45kw
intermediate frequency power 220kva
wire diameter 20-36mm
output chainlinks 10-20rmin
weight 17t
size 8000x6500x2500mm.
