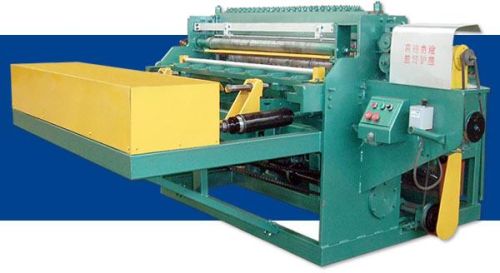

Automatic Steel Wire Mesh Machine, Brand Name : jiaoyang

We are offering Automatic Steel Wire Mesh Machine.

Function Characteristics ----motor power

This machine adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point and without welded tracks.

The cross and line wires are fed from coils.

This machine is equipped with precise equipment for weft cutting (that won the nation patent ZL2208722.2) and position (that won the nation patent AL02208721.4), so the length of wefts is identical and regular, it is unnecessary to slice the side.

Mesh pulling system adopts elastic tension link (that won the nation patent ZL200520024380.9) and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.

The finished products can be in coil or in panel.

The Main technical parameters:
Wire diameter
1.4-2.5mm
Line wire feed
Continuous in coil
Cross wire space
50-200mm
Cross wire feed
Continuous in coil
Line wire space
50-200mm
Rated voltage
380V 50HZ
Width of mesh
1200mm
Rated power
56KVA×2
Welding speed
50 times/min
Overall dimension
2.5 X 2.5 X 1.5M
Number of warp
25
Machine weight
2800KGS

Application
1.mesh fence, casting roof mesh in the building
2.Construction (3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh, animal cages).
