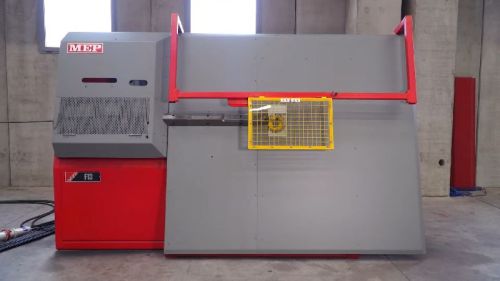

Icaro Automatic Stirrup Benders, Power : 6/3, 2

This is a special machine for the production of circular rings and spirals. The particular structure of the swivel frame allows the processing in the vertical position of circles and rings up to 34mm diameter of the iron for Armor worked from bar stock, and by orienting the machine horizontally, it can process directly from the coil.

The machine is designed for the enhanced production of stirrups. CE switchboard with a device for anti-repetition of the cycle.

Choice of 1-phase or 3-phase Standard equipment:

• 2 hardened bushes
• 4 hardened pins
• 1 hardened checking block
• 1 remote control pedal
• 1 stirrup linear measurer

This machine can produce rings and spirals with steel rods from 6mm diameter to 34mm diameter, with adjustable radius from a minimum of 15cm and unlimited maximum. The rollers are made of heat-treated alloy steel. Can work either in vertical or horizontal position. Two speeds available: 8 and 16 ram Power HP 3/5 Kw 2, 6/3, 2 Weight: 350 kg Dimensions: 95mm x 80mm x 96mm (h)
