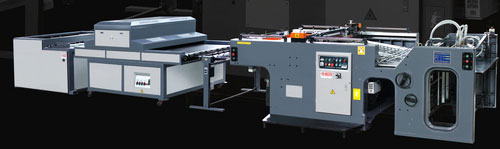

Automatic Stop Cylinder Screen Printing Machine, Voltage : 220V

Get Latest Price

Automatic GradeAutomatic
CertificationISO 9001:2008 Certified
Power1-3kw
Country of Origin220V
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Retailer
Year of Establishment 2003

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ApplicationsAdvertisement,Ceramic And Glass Applique,Electron Industry,Packing And Printing,Textile Transfer
Automatic GradeAutomatic
Power1-3kw
CertificationISO 9001:2008 Certified
Country of Origin220V
Number Of FlowerScreen Printing Machine
BenefitsLow Noise,Automatic Operations,High Precision & Speed,Paper Is Located Exactly And Steadily
TechnologyStop Cylinder Technology

The Automatic Stop Cylinder Screen Printing Machine, we offer, incorporates the conventional Stop Cylinder Technology, owing to which it is highly demanded amidst the global clients. Our Automatic Stop Cylinder Screen Printing Machine is used in diverse industrial applications like advertisement, ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), packing and printing, textile transfer, etc.
Benefits :

Low noise
Automatic operations
High precision & speed
Paper is located exactly and steadily

Technical Specifications

Model	JB-720A	JB-800A	JB-1020A
Max. Paper Size	720x520 Sq. mm	800x600 Sq. mm	1020x720 Sq. mm
Min. Paper Size	350x270 Sq. mm	350x270 Sq. mm	560x350 Sq. mm
Max. Printing Size	720x500 Sq. mm	800x590 Sq. mm	1020x710 Sq. mm
Paper Thickness	108~400 g/sq. m	108~400 g/ sq. m	120~400 g/sq. m
Border	<= 10 mm	<= 10 mm	<= 10 m
Printing Speed	1000-3600 pcs/h	1000-3300 pcs/h	1000-3000 pcs/h
Power	3P 380V 50Hz 8.3KW	3P 380V 50Hz 8.3 KW	3P 380V 50 Hz 13.9KW
Total Weight	3500Kg	3800 Kg	5000Kg
Overall Size	4200x2400x1600 mm	3400x2550x1600 mm	4800x2800x1600 mm
