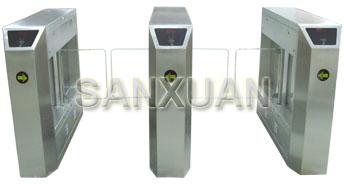

Automatic Swing Gate

The SSG-320B automatic swing gate guarantees fast, smooth and efficient access control in both entry and exit directions.
When power off, the door swings open into the casings to the request of fire protection.
Its particularly elaborate design making this security barrier appropriate for almost any building
With its mechanical design and its embedded electronics, the equipment guarantees high levels of safety.
The system is provided with a standard eclectics interface and is easily integrated with access control system.
It can be used for intelligent control and management of the passage after equipped with different access control system.
Function description:
The door swings open automatically, permit authorized passage and block unauthorized entry and raise alarms draw the attention of security.
With function of self-examine and alarms, it is convenient for users to maintain and use.
Two directions controlled/one direction controlled, with LED direction indicator.
Reset automatically, go signal will be cancelled if passage through is not completed within pre-set time, the standard default is 10 seconds.
Unit can be adjusted permanent open or close when power off to meet different needs.
Unit can be controlled and administered by remote control
Normally closed operation mode or normally open operation mode can be adjustedvia the built-in small keyboard or software.
Anti-pinch function, tailing-proof and intruder alarm function
Working principle:
The user can be authorized via access control system or push button, Confirmation of authorization is provided through a LED display in the top cover of the unit and the door swings open automatically, immediately the user passes the passage, the door swings quickly re-close to prevent tailing-proof, an anti-pinch function will protected the user to prevent pinch.
Technology specifications:
Framework: 304 Grade Stainless Steel
Dimensions: 1400*280*990mm
Net weight: single swing unit: 110kg; double swings unit: 140kg
Interface: RS485
Power supply: 200~240V AC / 100~120VAC 50/60Hz
Main board voltage: 24V
Transit speed: 30-40persons per minute
Working Environment: Indoor/Outdoor (with a tent over)
Temperature: -20 celsius to 70 celsius
Humidity: ≤90%
Options:
Access controller and proximity reader
Material of door swings is optional
316 grade stainless steel
Remote control
